SKU: 6302-ZZE/C3-NACHI

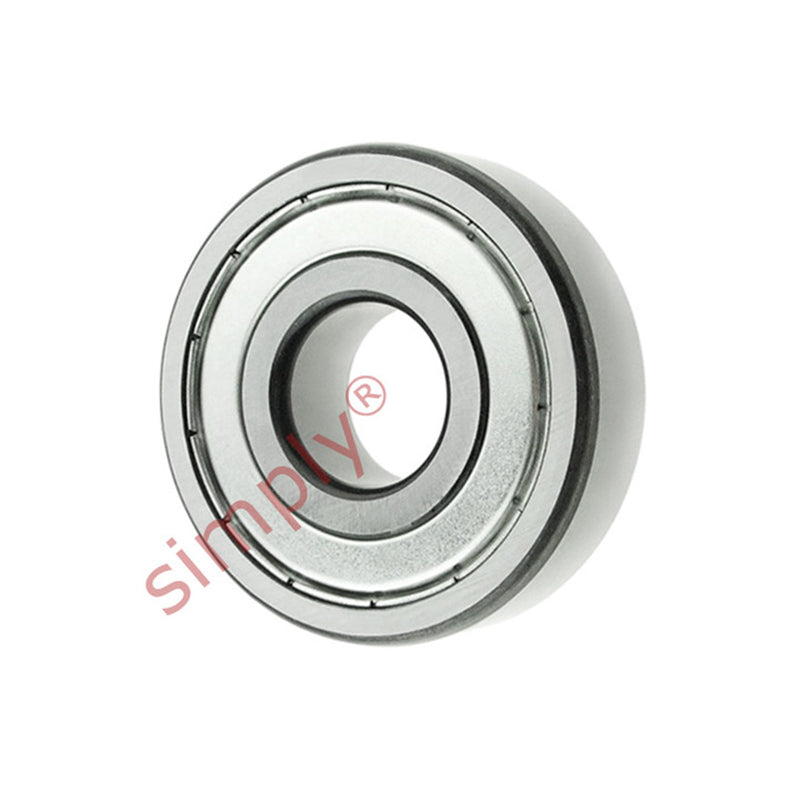

NACHI 6302ZZEC3 Metal Shielded Deep Groove Ball Bearing 15x42x13mm
NACHI 6302ZZEC3 Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 6302ZZC3 63022ZC3 6302.2ZC3 6302KDDC3 6302DDC3 63022ZRC3 6302FFC3
In stock
Price Break
5+
CHF 5.44
9+
CHF 5.14
19+
CHF 5.08
29+
CHF 5.02
49+
CHF 4.95
74+
CHF 4.89
99+
CHF 4.59
199+
CHF 4.53
249+
CHF 4.46
499+
CHF 4.40
999+
CHF 4.28
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6302ZZC3 63022ZC3 6302.2ZC3 6302KDDC3 6302DDC3 63022ZRC3 6302FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 11400 kN |
| Static load | 5400 kN |
| Max speed | 17000 rpm |
| da min | 21mm |
| Da max | 36mm |
| ra max | 1mm |
| Weight | 0.082 kg |
