SKU: 6302-ZZE-NACHI

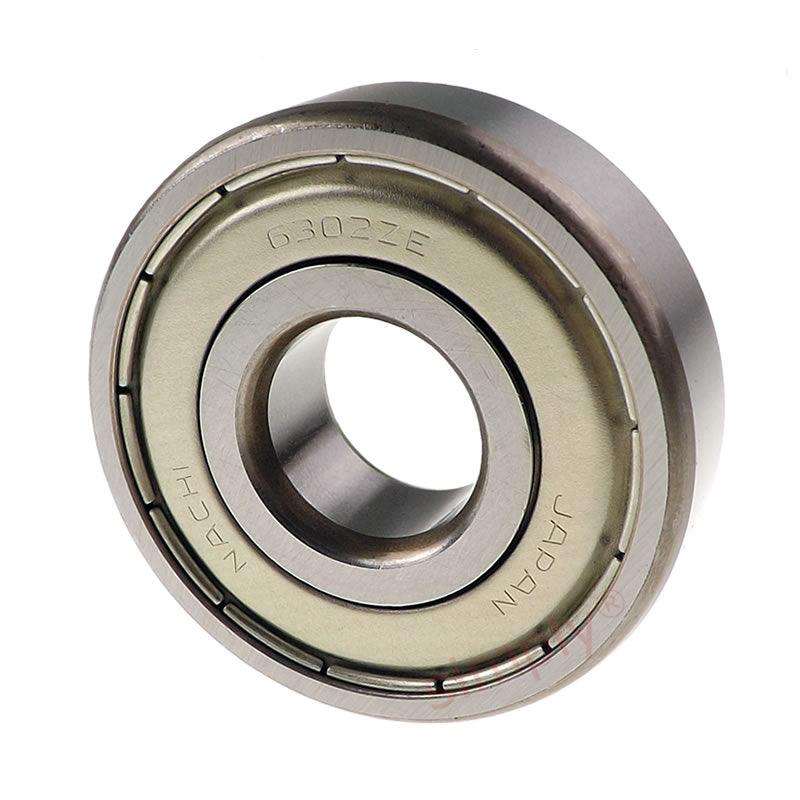

NACHI 6302ZZE Metal Shielded Deep Groove Ball Bearing 15x42x13mm
NACHI 6302ZZE Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 6302ZZ 63022Z 6302.2Z 6302KDD 6302DD 63022ZR 6302FF
In stock
Price Break
5+
CHF 5.44
9+
CHF 5.14
19+
CHF 5.08
29+
CHF 5.02
49+
CHF 4.95
74+
CHF 4.89
99+
CHF 4.59
199+
CHF 4.53
249+
CHF 4.46
499+
CHF 4.40
999+
CHF 4.28
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6302ZZ 63022Z 6302.2Z 6302KDD 6302DD 63022ZR 6302FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 11400 kN |
| Static load | 5400 kN |
| Max speed | 17000 rpm |
| da min | 21mm |
| Da max | 36mm |
| ra max | 1mm |
| Weight | 0.082 kg |
