SKU: 6303ETN9/C3-SKF

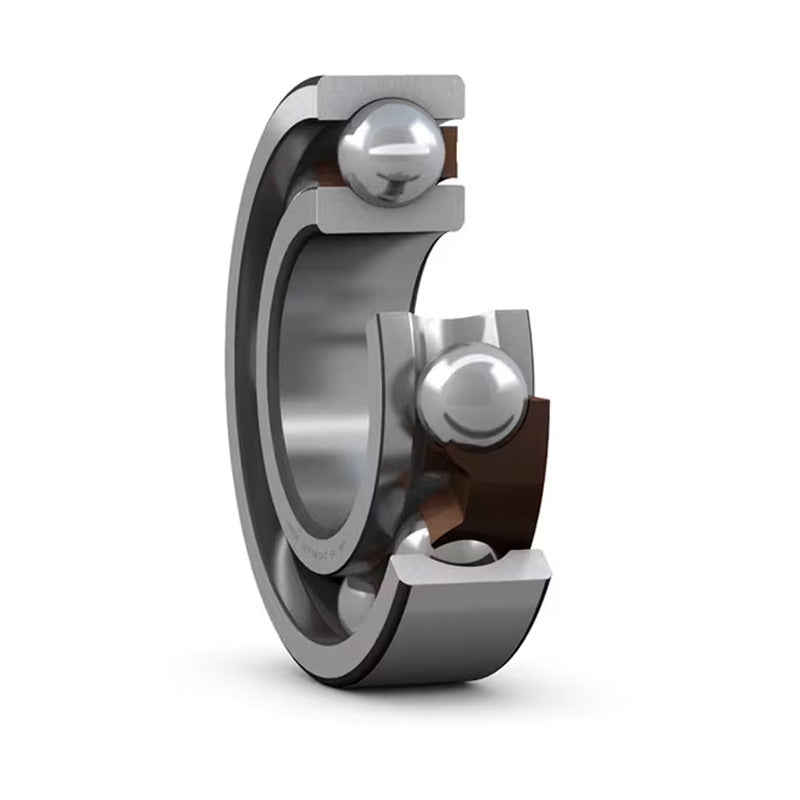

SKF 6303ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 17x47x14mm
SKF 6303ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 17x47x14mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
4+
CHF 13.61
10+
CHF 12.84
20+
CHF 12.69
30+
CHF 12.54
50+
CHF 12.38
75+
CHF 12.23
100+
CHF 11.47
200+
CHF 11.31
250+
CHF 11.16
500+
CHF 11.01
1000+
CHF 10.70
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load | 14.3 kN |
| Static load | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 34000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.12 kg |
| d1 | 26.5mm |
| D1 | 37.4mm |
| D2 | 39.7mm |
| r1r2 min | 1mm |
| da min | 22.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 12 |
