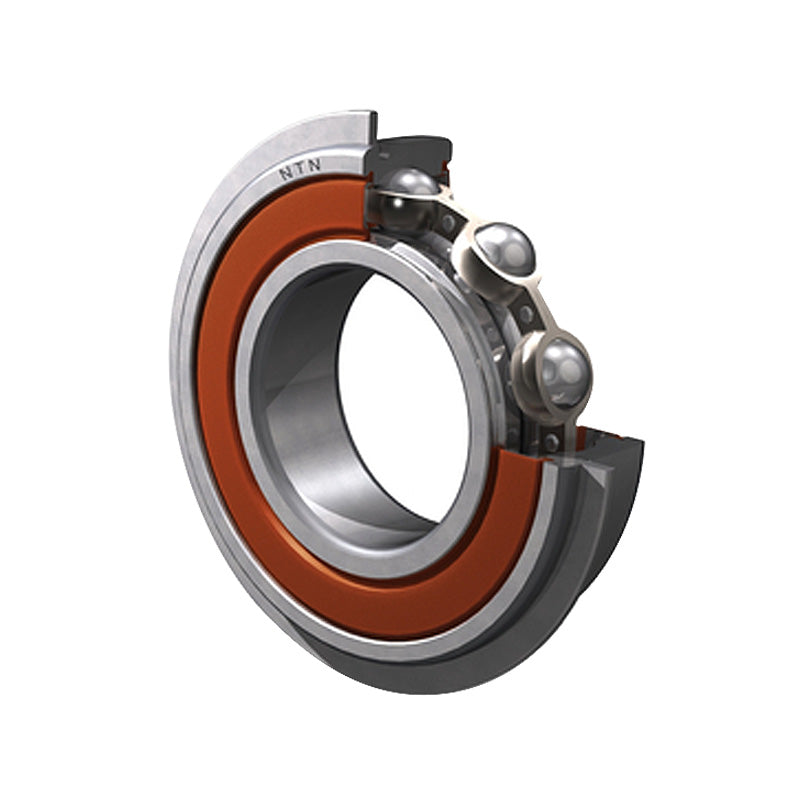

NTN 6303LLUNRC3/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 17x47x14mm

Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.

Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6303NSENRC3 6303DUNRC3 6303RSNRC3 6303RSHNRC3 6303PNRC3 6303RSRNRC3 6303LUNRC3 63032NSENRC3 6303DDUNRC3 63032RSNRC3 6303-2RSNRC3 63032RS1NRC3 63032RSHNRC3 6303PPNRC3 63032RSRNRC3 6303LLUNRC3 6303RS2NRC3 63032RS2NRC3 63032RSLNRC3 6303LFSNRC3 6303EENRC3 303SZZGC3

Brand / Quality:

NTN - High Quality

Inside Diameter:

17mm

Outside Diameter:

47mm

Width:

14mm

Seals / Shields:

Rubber Sealed

Clearance:

C3

Snap Ring:

Snap Ring
