SKU: 6303NR-NSK

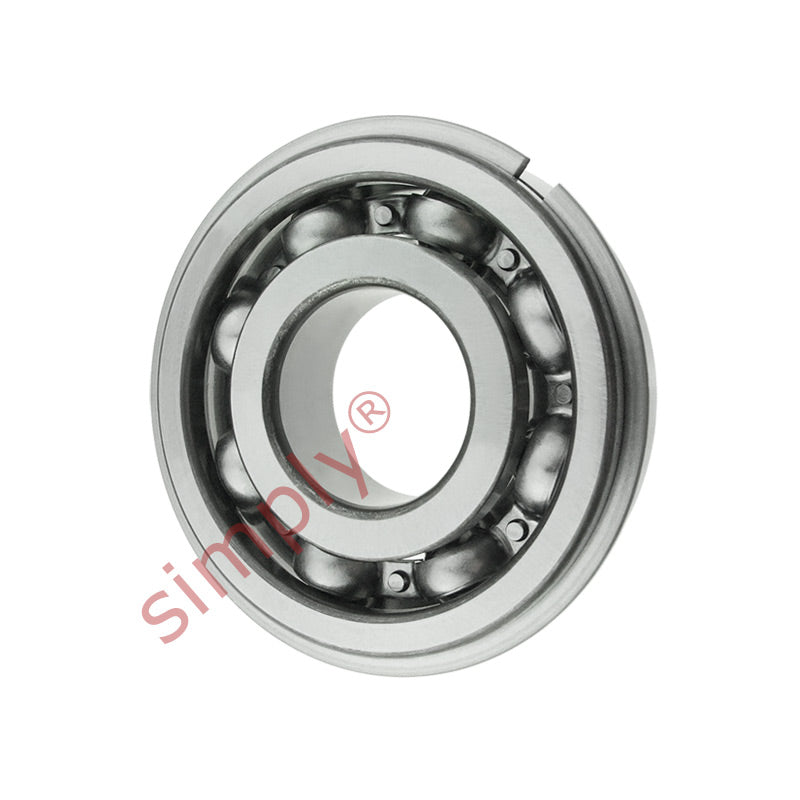

NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
4+
CHF 5.89
10+
CHF 5.56
20+
CHF 5.49
30+
CHF 5.43
50+
CHF 5.36
75+
CHF 5.30
100+
CHF 4.97
200+
CHF 4.90
250+
CHF 4.83
500+
CHF 4.77
1000+
CHF 4.63
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| r min | 1mm |
| Dynamic load Cr | 13600 N (1390 kgf) |
| Static load Cor | 6650 N (675 kgf) |
| Factor | 12.4 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 44.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 52.7mm |
| f max | 1.12mm |
| da2 min | 22mm |
| da2max | 25.5mm |
| Da2max | 42mm |
| ra max | 1mm |
| Dx min | 53.5mm |
| Cy max | 3.3mm |
| Weight | 0.113 kg |
