SKU: 6304-2Z-HT-330

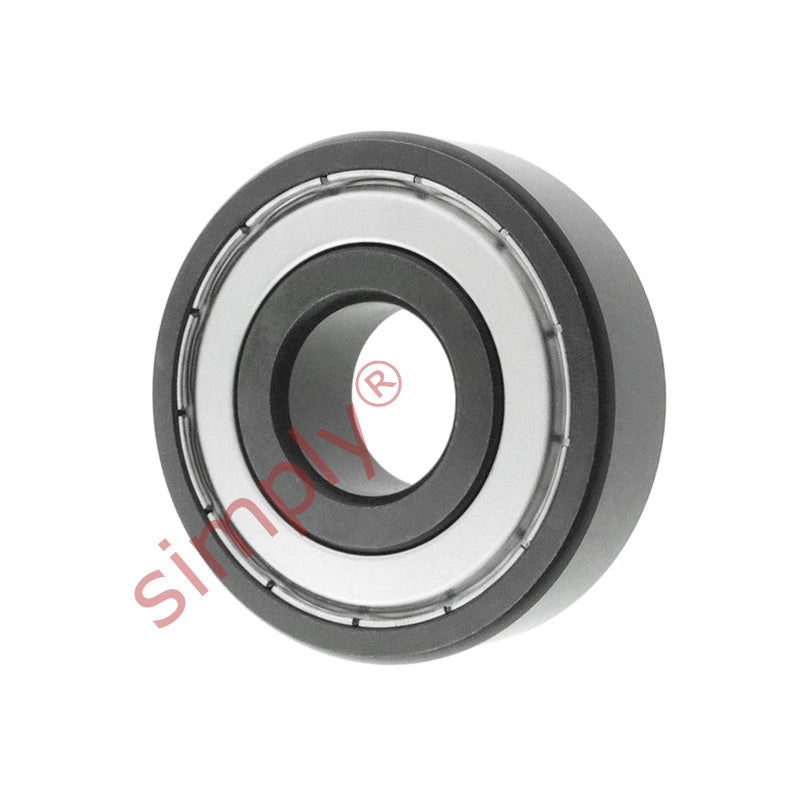

6304ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x52x15mm Max 160rpm
6304ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x52x15mm Max 160rpm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
Equivalent to: 63042ZVA201 63042ZVA208 63042ZVA228
In stock
Price Break
3+
CHF 13.15
5+
CHF 12.42
10+
CHF 12.27
15+
CHF 12.12
20+
CHF 11.97
30+
CHF 11.82
40+
CHF 11.08
50+
CHF 10.94
60+
CHF 10.79
75+
CHF 10.64
100+
CHF 10.35
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63042ZVA201 63042ZVA208 63042ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 20mm |
|---|---|
| Outside diameter D | 52mm |
| Width W | 15mm |
| Static load max | 4.91 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 160 rpm |
| Weight | 140 g |
