SKU: 6304ETN9/C3-SKF

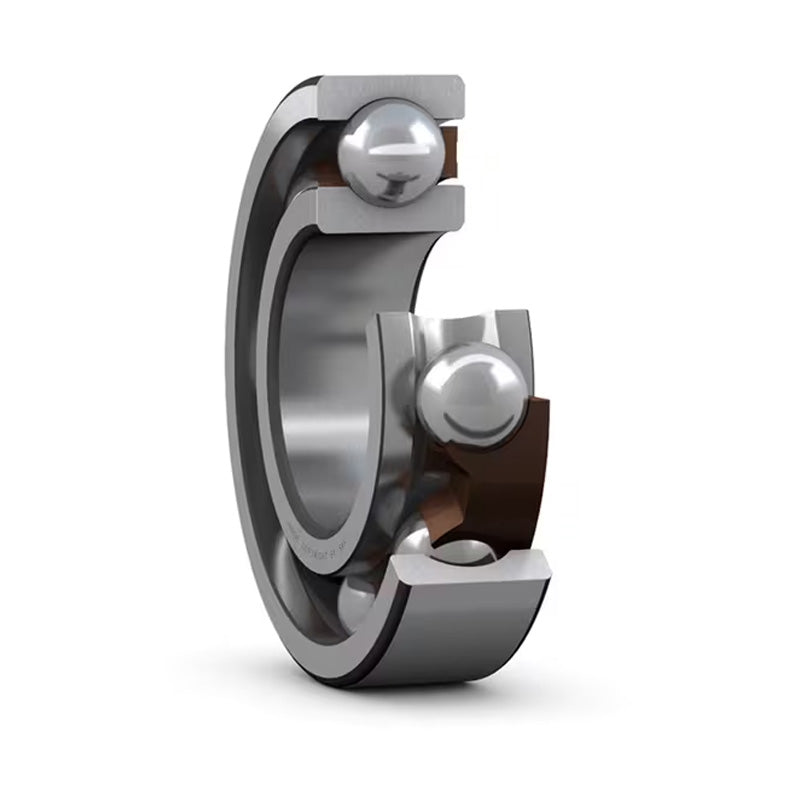

SKF 6304ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 20x52x15mm
SKF 6304ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 20x52x15mm
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
4+
CHF 25.83
10+
CHF 24.38
20+
CHF 24.09
30+
CHF 23.80
50+
CHF 23.51
75+
CHF 23.22
100+
CHF 21.77
200+
CHF 21.47
250+
CHF 21.18
500+
CHF 20.89
1000+
CHF 20.31
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load | 16.8 kN |
| Static load | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.14 kg |
| d1 | 30.4mm |
| D1 | 41.6mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 12 |
