SKU: 6304ETN9-SKF

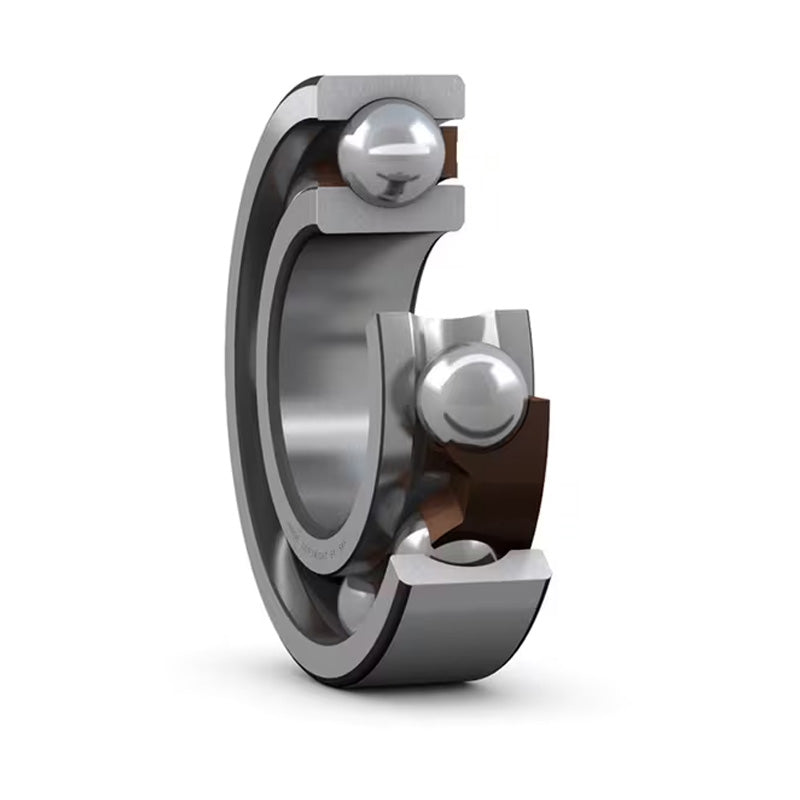

SKF 6304ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x52x15mm
SKF 6304ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x52x15mm
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
In stock
Price Break
4+
CHF 32.62
10+
CHF 30.79
20+
CHF 30.42
30+
CHF 30.06
50+
CHF 29.69
75+
CHF 29.32
100+
CHF 27.49
200+
CHF 27.12
250+
CHF 26.76
500+
CHF 26.39
1000+
CHF 25.66
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load | 18.2 kN |
| Static load | 9 kN |
| Fatigue load limit Pu | 0.38 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.14 kg |
| d1 | 30.2mm |
| D1 | 42.6mm |
| D2 | n/amm |
| r1r2 min | 1.1mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 12 |
