SKU: 6305-2RS1/C3-EU

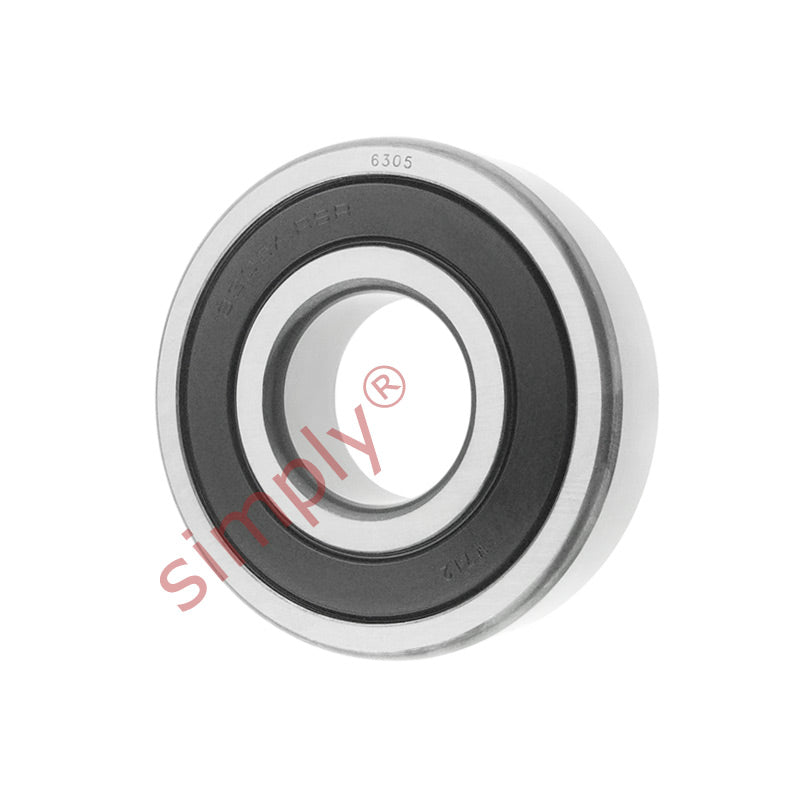

63052RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 25x62x17mm
Equivalent to: 6305NSEC3 6305DUC3 6305RSC3 6305RSHC3 6305PC3 6305RSRC3 6305LUC3 63052NSEC3 6305DDUC3 6305PPC3 63052RSRC3 6305LLUC3 63052RSC3 63052RSC3 63052RS2C3 63052RS1C3 63052RSHC3
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6305NSEC3 6305DUC3 6305RSC3 6305RSHC3 6305PC3 6305RSRC3 6305LUC3 63052NSEC3 6305DDUC3 6305PPC3 63052RSRC3 6305LLUC3 63052RSC3 63052RSC3 63052RS2C3 63052RS1C3 63052RSHC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 20.6 kN |
| Static load Cor | 11.3 kN |
| Speed in grease | 11000 rpm |
| Speed in oil | 13000 rpm |
