SKU: 6306-2Z/C3-KOY

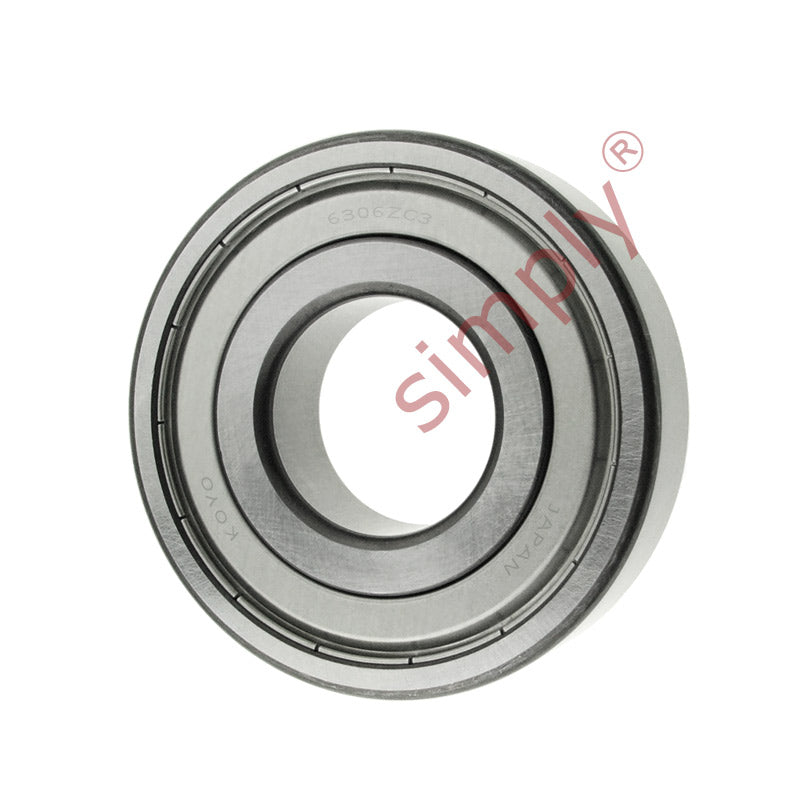

KOYO 63062ZC3 Metal Shielded Deep Groove Ball Bearing 30x72x19mm
KOYO 63062ZC3 Metal Shielded Deep Groove Ball Bearing 30x72x19mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: 6306ZZEC3 6306ZZC3 6306.2ZC3 6306KDDC3 6306DDC3 63062ZRC3 6306FFC3
In stock
Price Break
5+
CHF 14.06
9+
CHF 13.27
19+
CHF 13.11
29+
CHF 12.95
49+
CHF 12.80
74+
CHF 12.64
99+
CHF 11.85
199+
CHF 11.69
249+
CHF 11.53
499+
CHF 11.37
999+
CHF 11.06
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6306ZZEC3 6306ZZC3 6306.2ZC3 6306KDDC3 6306DDC3 63062ZRC3 6306FFC3
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 26.7 kN |
| Static load | 15 kN |
| Max speed in oil | 12000 rpm |
| Max speed in grease | 6400 rpm |
