SKU: 6306-NTN

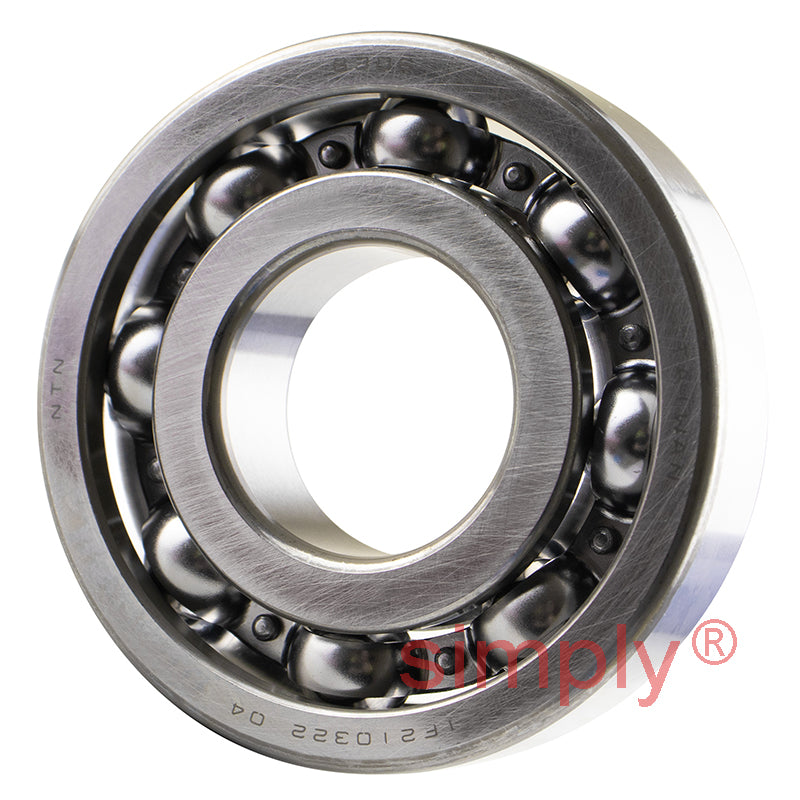

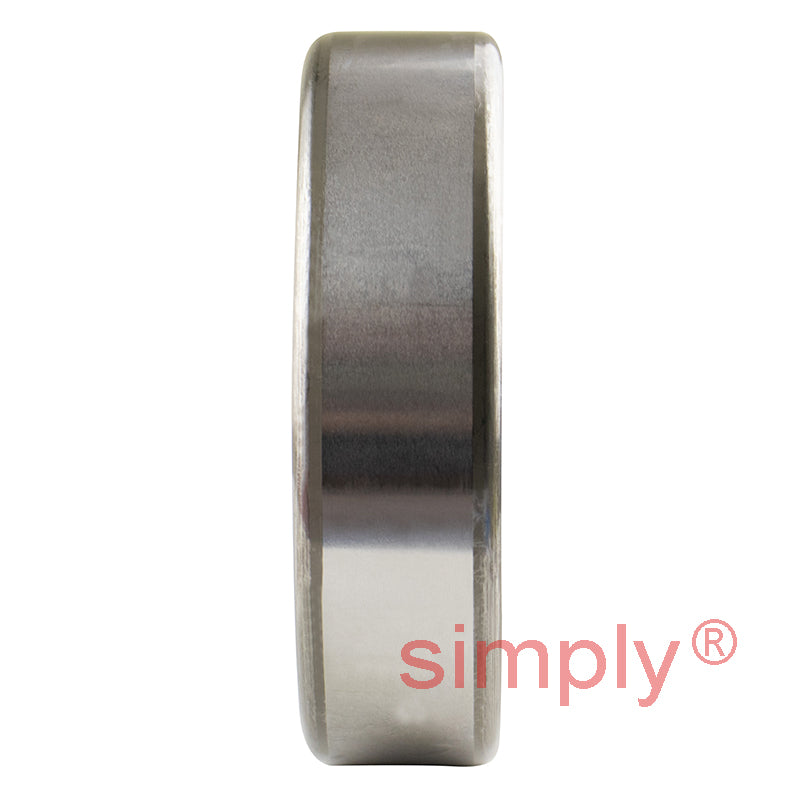

NTN 6306 Open Type Deep Groove Ball Bearing 30x72x19mm
NTN 6306 Open Type Deep Groove Ball Bearing 30x72x19mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
Equivalent to: 6306CM 306K 1306 306KS 6306 3306 7B
In stock
Price Break
3+
CHF 12.00
5+
CHF 11.32
10+
CHF 11.19
25+
CHF 11.05
49+
CHF 10.92
74+
CHF 10.78
99+
CHF 10.11
199+
CHF 9.98
249+
CHF 9.84
499+
CHF 9.71
999+
CHF 9.44
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6306CM 306K 1306 306KS 6306 3306 7B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 72mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.5 kN |
| C<sub>or</sub> | 15 kN |
| C<sub>u</sub> | 1.14 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 36.5mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.36 kg |
