SKU: 6306-ZZE-NACHI

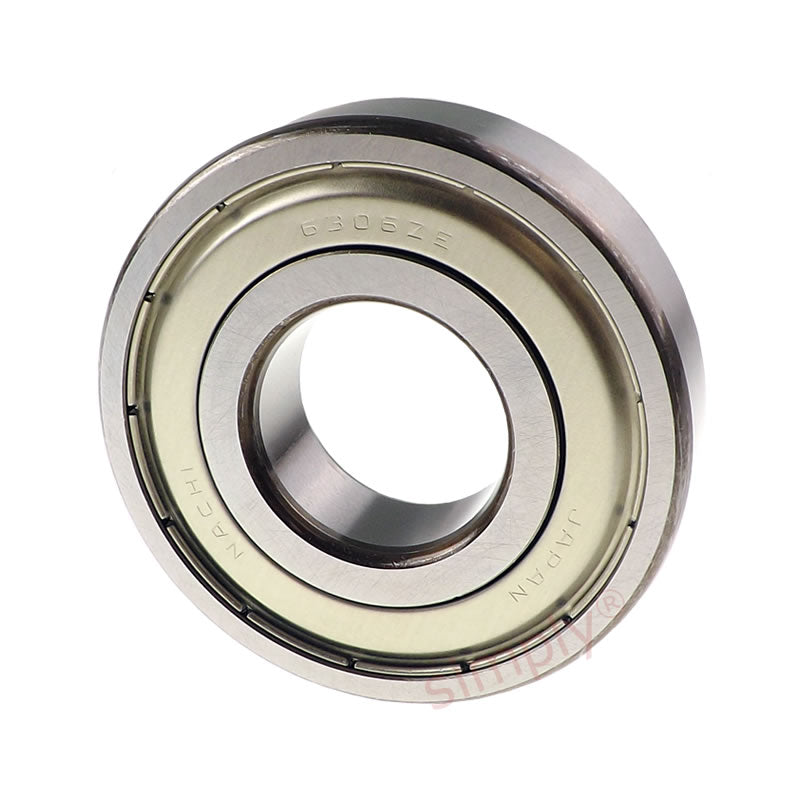

NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: 6306ZZ 63062Z 6306.2Z 6306KDD 6306DD 63062ZR 6306FF
In stock
Price Break
5+
CHF 7.73
9+
CHF 7.29
19+
CHF 7.20
29+
CHF 7.12
49+
CHF 7.03
74+
CHF 6.94
99+
CHF 6.51
199+
CHF 6.42
249+
CHF 6.34
499+
CHF 6.25
999+
CHF 6.08
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6306ZZ 63062Z 6306.2Z 6306KDD 6306DD 63062ZR 6306FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 26700 kN |
| Static load | 15000 kN |
| Max speed | 10000 rpm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
| Weight | 0.346 kg |
