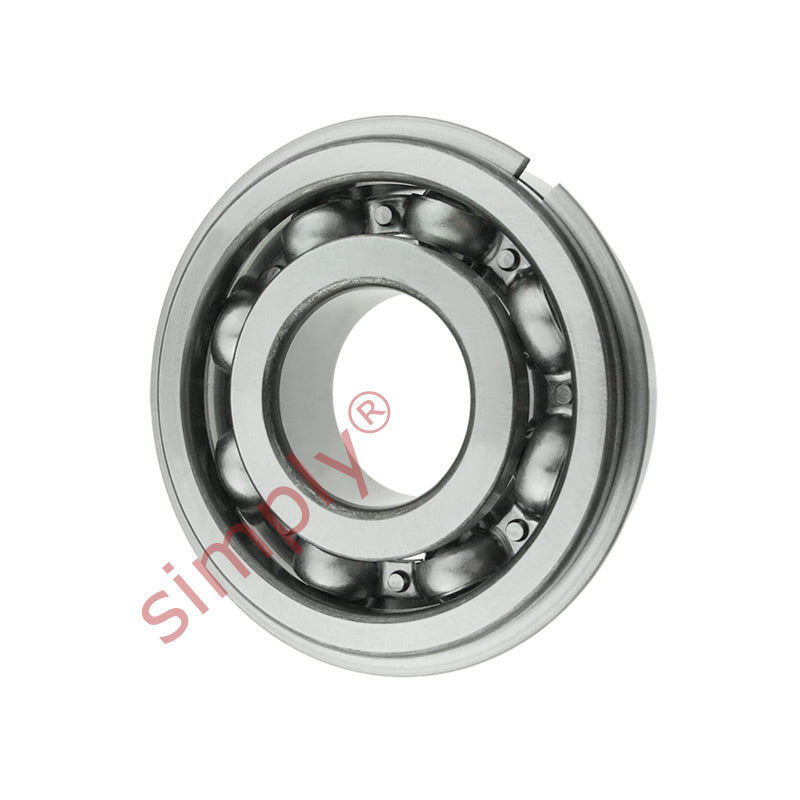

NSK 6306NR Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
NSK 6306NR Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
4+
CHF 8.85
10+
CHF 8.35
20+
CHF 8.25
30+
CHF 8.15
50+
CHF 8.05
75+
CHF 7.95
100+
CHF 7.46
200+
CHF 7.36
250+
CHF 7.26
500+
CHF 7.16
1000+
CHF 6.96
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| r min | 1.1mm |
| Dynamic load Cr | 26700 N (2720 kgf) |
| Static load Cor | 15000 N (1530 kgf) |
| Factor | 13.3 |
| Speed in grease | 9500 rpm |
| Speed in oil | 12000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 68.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 78.6mm |
| f max | 1.7mm |
| da2 min | 36.5mm |
| da2max | 42.5mm |
| Da2max | 65.5mm |
| ra max | 1mm |
| Dx min | 80mm |
| Cy max | 4.6mm |
| Weight | 0.345 kg |
