SKU: 6306NR-SKF

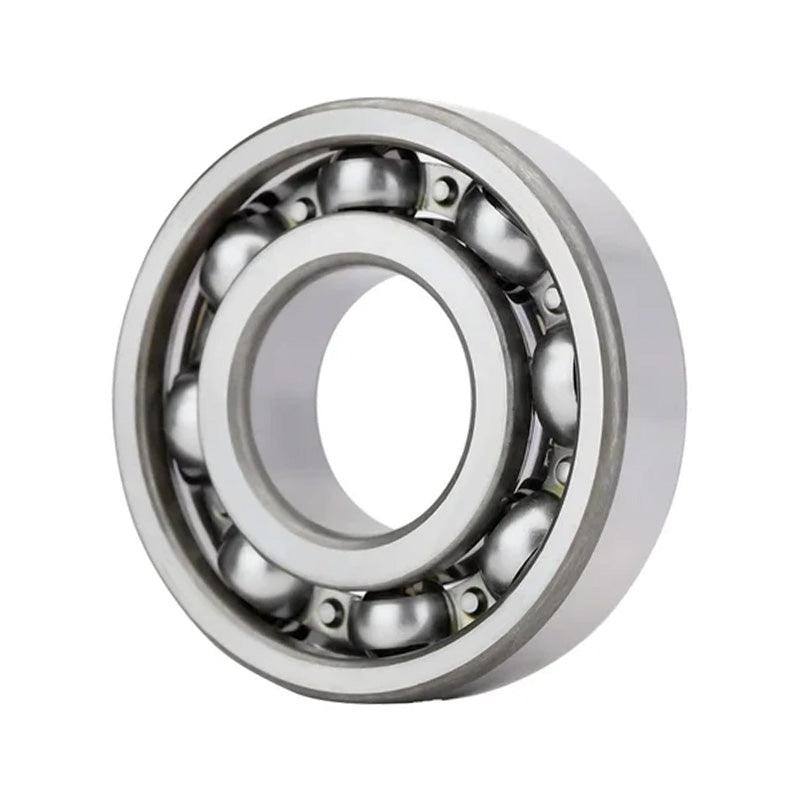

SKF 6306NR Open Type Snap Ring Deep Groove Bearing 30x72x19mm
SKF 6306NR Open Type Snap Ring Deep Groove Bearing 30x72x19mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
In stock
Price Break
4+
CHF 16.59
10+
CHF 15.66
20+
CHF 15.47
30+
CHF 15.28
50+
CHF 15.10
75+
CHF 14.91
100+
CHF 13.98
200+
CHF 13.79
250+
CHF 13.61
500+
CHF 13.42
1000+
CHF 13.05
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.67 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.35kg |
| Snap ring | SP 72 |
| d1 | 44.6mm |
| D2 | 61.9mm |
| D3 | 68.81mm |
| D4 | 78.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 37mm |
| Da max | 65mm |
| Db min | 80mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
