SKU: 6307-2RS1/C3-EU

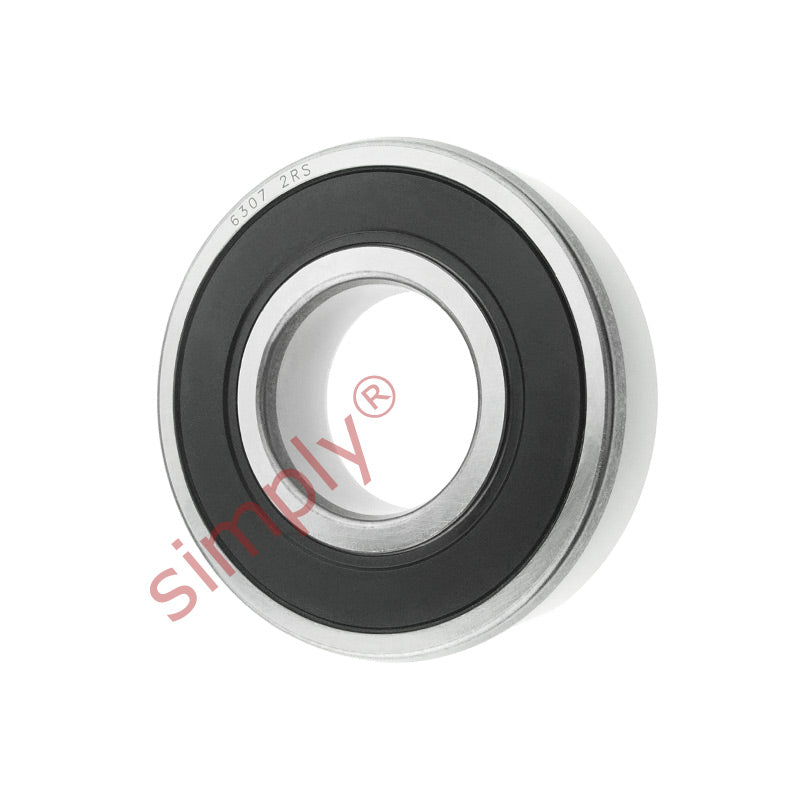

63072RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 35x80x21mm
Equivalent to: 6307NSEC3 6307DUC3 6307RSC3 6307RSHC3 6307PC3 6307RSRC3 6307LUC3 63072NSEC3 6307DDUC3 6307PPC3 63072RSRC3 6307LLUC3 63072RSC3 63072RSC3 63072RS2C3 63072RS1C3 63072RSHC3
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6307NSEC3 6307DUC3 6307RSC3 6307RSHC3 6307PC3 6307RSRC3 6307LUC3 63072NSEC3 6307DDUC3 6307PPC3 63072RSRC3 6307LLUC3 63072RSC3 63072RSC3 63072RS2C3 63072RS1C3 63072RSHC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| r min | 1.5mm |
| Dynamic load Cr | 33.4 kN |
| Static load Cor | 19.3 kN |
| Speed in grease | 8500 rpm |
| Speed in oil | 10000 rpm |
