SKU: 6307-NTN

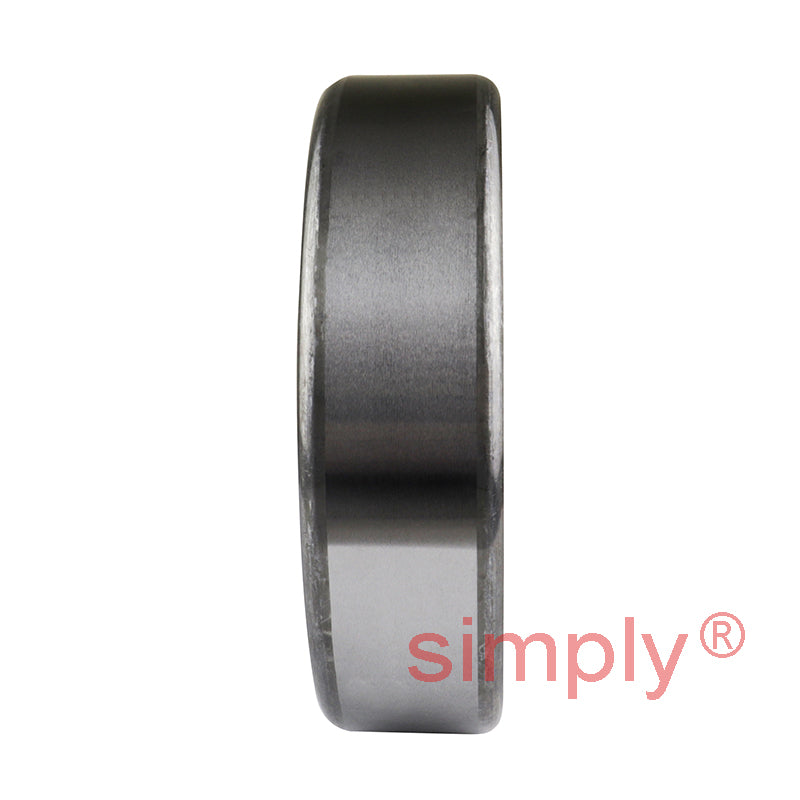

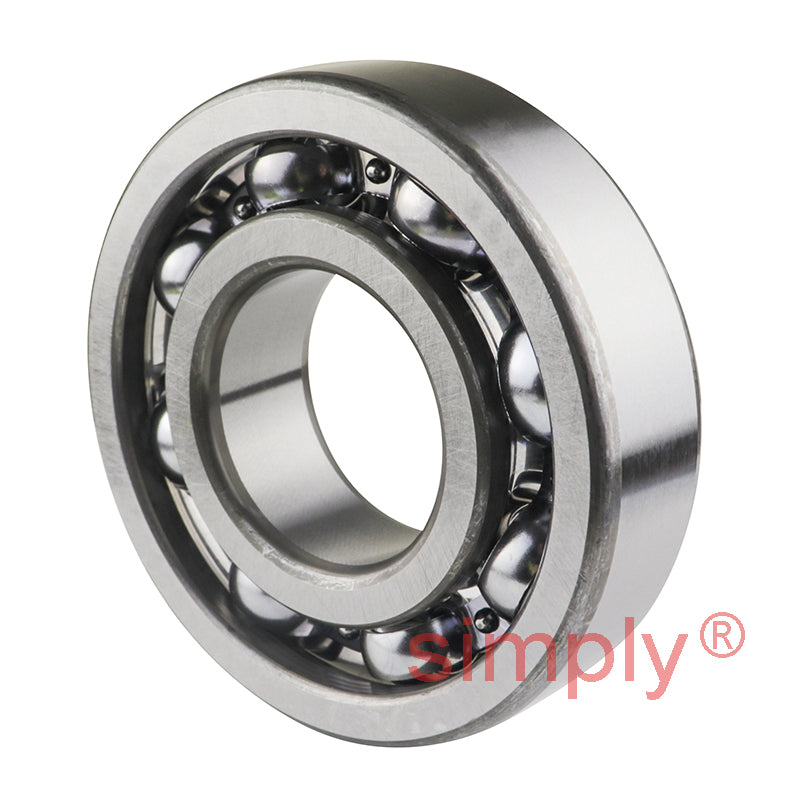

NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: 6307CM 307K 1307 307KS 6307 3307 8B
In stock
Price Break
3+
CHF 16.11
5+
CHF 15.20
10+
CHF 15.02
25+
CHF 14.84
49+
CHF 14.66
74+
CHF 14.48
99+
CHF 13.58
199+
CHF 13.39
249+
CHF 13.21
499+
CHF 13.03
999+
CHF 12.67
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6307CM 307K 1307 307KS 6307 3307 8B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 80mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 37 kN |
| C<sub>or</sub> | 19.1 kN |
| C<sub>u</sub> | 1.47 kN |
| f<sub>0</sub> | 13.1 kN |
| Grease | 8800 rpm |
| Oil | 10000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 43mm |
| D<sub>a</sub> Max. | 72mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.457 kg |
