SKU: 6308-2NSE-NACHI

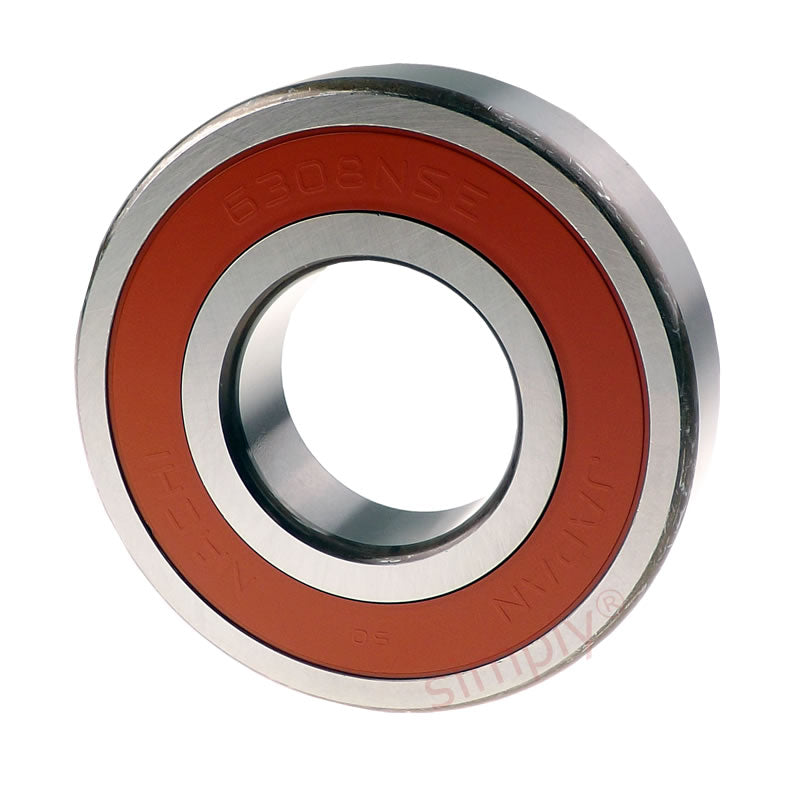

NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: 6308NSE 6308DU 6308RS 6308RSH 6308P 6308RSR 6308LU 6308DDU 63082RS 63082RS1 63082RSH 6308PP 63082RSR 63082RSR
In stock
Price Break
5+
CHF 16.61
9+
CHF 15.67
19+
CHF 15.49
29+
CHF 15.30
49+
CHF 15.11
74+
CHF 14.93
99+
CHF 14.00
199+
CHF 13.81
249+
CHF 13.62
499+
CHF 13.44
999+
CHF 13.06
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6308NSE 6308DU 6308RS 6308RSH 6308P 6308RSR 6308LU 6308DDU 63082RS 63082RS1 63082RSH 6308PP 63082RSR 63082RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
