SKU: 6308-2RS1/C3WT-SKF

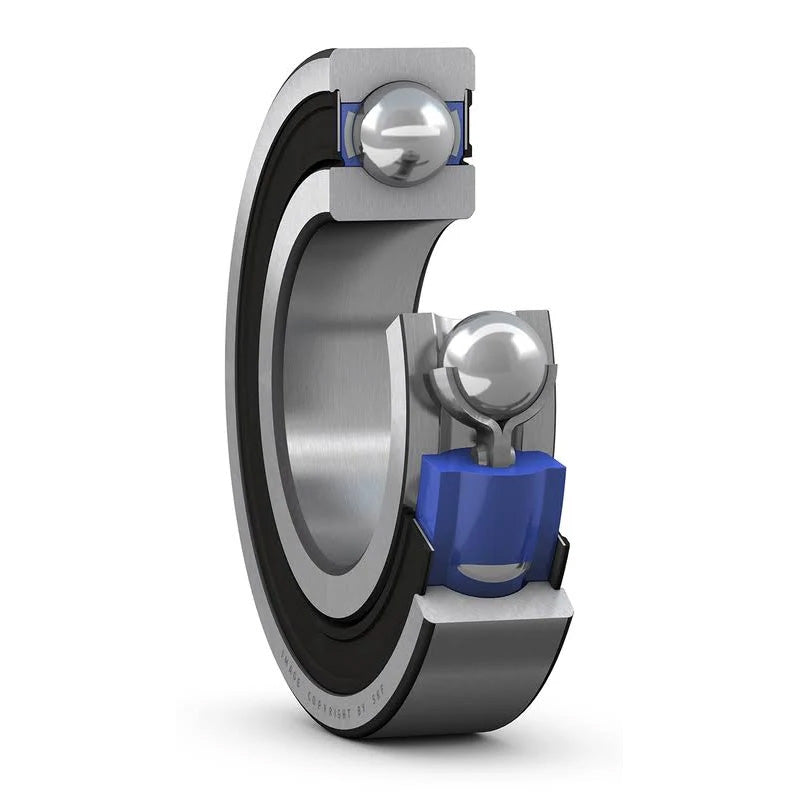

SKF 63082RS1C3WT Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
SKF 63082RS1C3WT Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Regular price
CHF 108.00
ex VAT
Regular price
Sale price
CHF 108.00
ex VAT
Equivalent to: 6308RS1C3WT
In stock
Price Break
4+
CHF 85.76
10+
CHF 80.94
20+
CHF 79.98
30+
CHF 79.01
50+
CHF 78.05
75+
CHF 77.08
100+
CHF 72.27
200+
CHF 71.30
250+
CHF 70.34
500+
CHF 69.38
1000+
CHF 67.45
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6308RS1C3WT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 42.3 kN |
| Static load Co | 24 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.63 kg |
| d1 | 56.1mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
