SKU: 6308-ZZE-NACHI

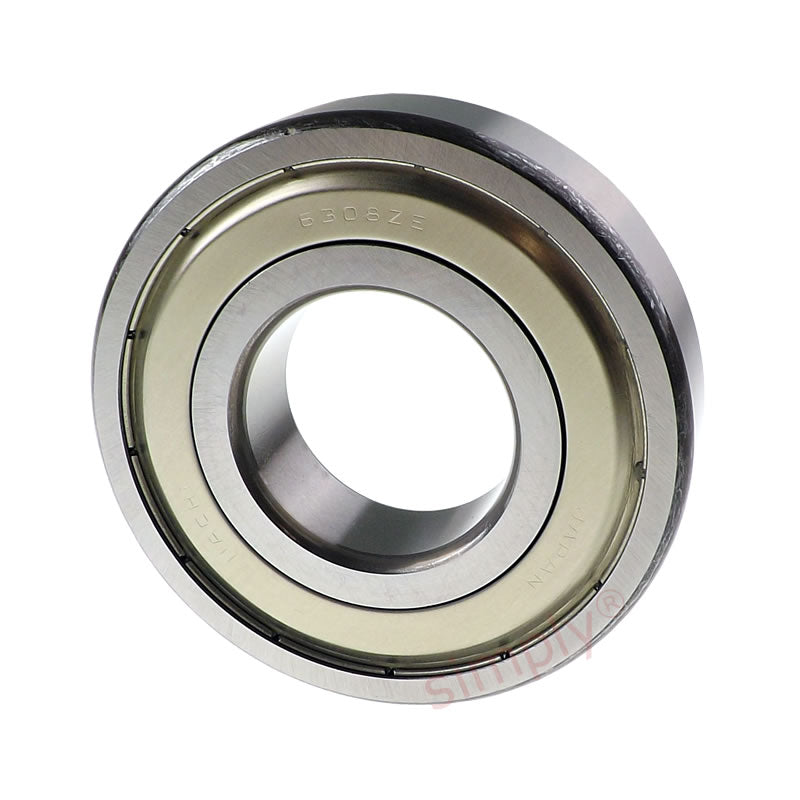

NACHI 6308ZZE Metal Shielded Deep Groove Ball Bearing 40x90x23mm
NACHI 6308ZZE Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: 6308ZZ 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF
In stock
Price Break
5+
CHF 14.69
9+
CHF 13.87
19+
CHF 13.70
29+
CHF 13.54
49+
CHF 13.37
74+
CHF 13.21
99+
CHF 12.38
199+
CHF 12.22
249+
CHF 12.05
499+
CHF 11.89
999+
CHF 11.56
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6308ZZ 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
