SKU: 6309/C3-FAG

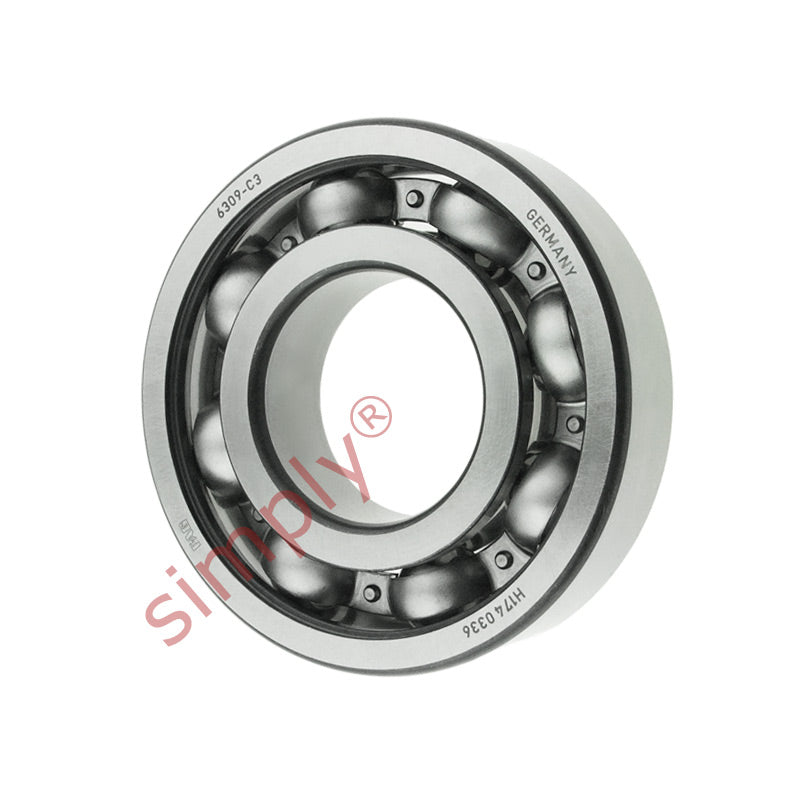

FAG 6309C3 Open Deep Groove Ball Bearing 45x100x25mm
FAG 6309C3 Open Deep Groove Ball Bearing 45x100x25mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
Equivalent to: 6309 6309C3
In stock
Price Break
10+
CHF 11.39
19+
CHF 10.75
29+
CHF 10.62
39+
CHF 10.50
49+
CHF 10.37
74+
CHF 10.24
99+
CHF 9.60
199+
CHF 9.47
249+
CHF 9.34
499+
CHF 9.22
999+
CHF 8.96
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6309 6309C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Mass | 0.83 kg |
| d1 | 62.2mm |
| D1 | 82.7mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
