SKU: 6309-FAG

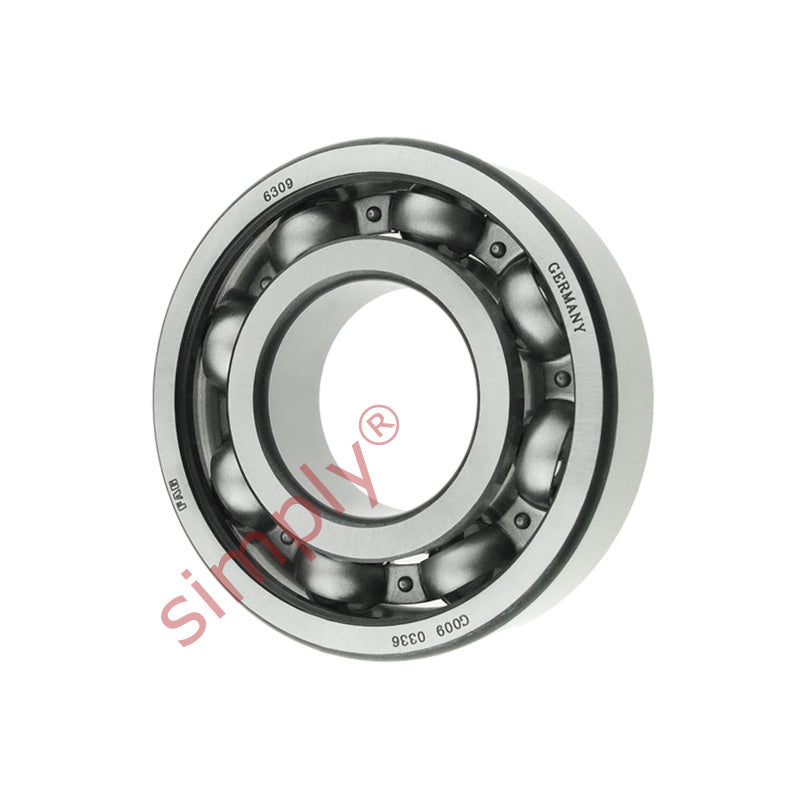

FAG 6309 Open Deep Groove Ball Bearing 45x100x25mm
FAG 6309 Open Deep Groove Ball Bearing 45x100x25mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
10+
CHF 14.36
19+
CHF 13.55
29+
CHF 13.39
39+
CHF 13.23
49+
CHF 13.07
74+
CHF 12.90
99+
CHF 12.10
199+
CHF 11.94
249+
CHF 11.77
499+
CHF 11.61
999+
CHF 11.29
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Mass | 0.83 kg |
| d1 | 62.2mm |
| D1 | 82.7mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
