SKU: 6309-SKF

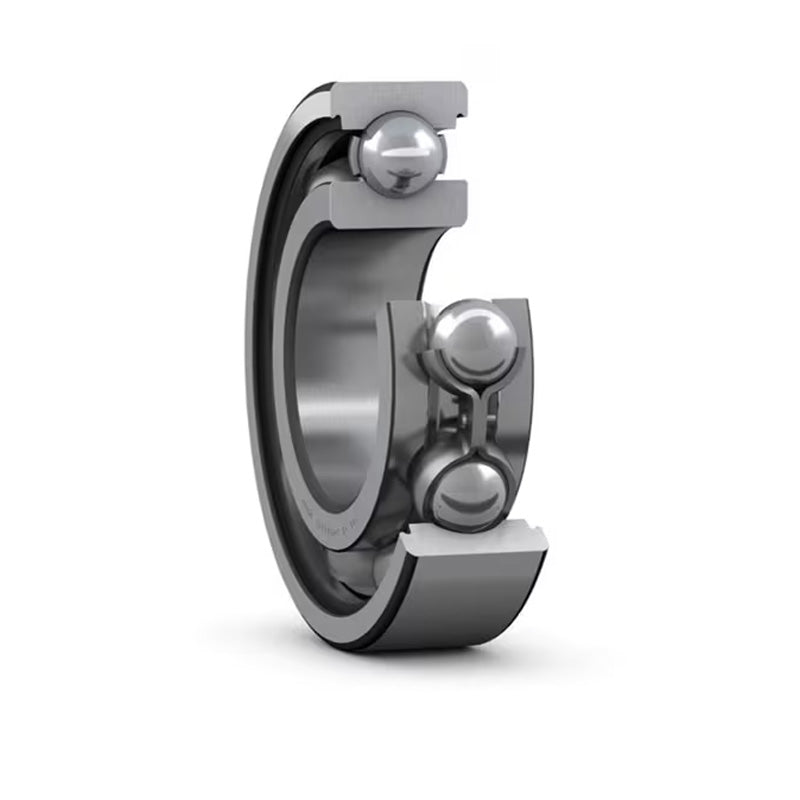

SKF 6309 Open Deep Groove Ball Bearing 45x100x25mm
SKF 6309 Open Deep Groove Ball Bearing 45x100x25mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
Equivalent to: 309K 1309 309KS 6309 3309 10B
In stock
Price Break
4+
CHF 19.46
10+
CHF 18.37
20+
CHF 18.15
30+
CHF 17.93
50+
CHF 17.71
75+
CHF 17.50
100+
CHF 16.40
200+
CHF 16.18
250+
CHF 15.97
500+
CHF 15.75
1000+
CHF 15.31
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 309K 1309 309KS 6309 3309 10B
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load | 55.3 kN |
| Static load | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.83 kg |
| d1 | 62.2mm |
| D1 | 82.7mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
