SKU: 6309-ZZE-NACHI

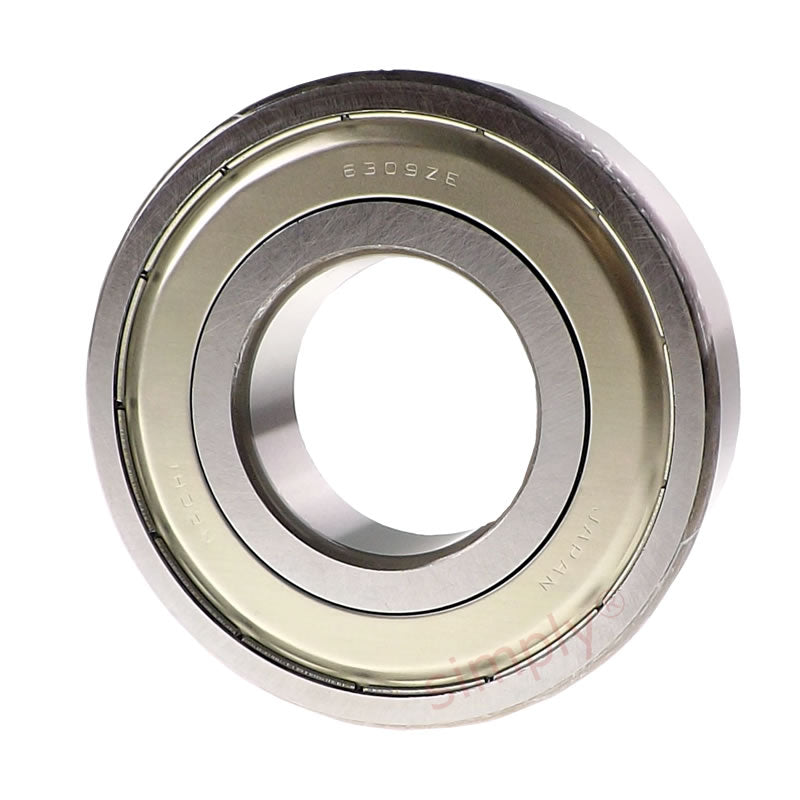

NACHI 6309ZZE Metal Shielded Deep Groove Ball Bearing 45x100x25mm
NACHI 6309ZZE Metal Shielded Deep Groove Ball Bearing 45x100x25mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: 6309ZZ 63092Z 6309.2Z 6309KDD 6309DD 63092ZR 6309FF
In stock
Price Break
5+
CHF 16.56
9+
CHF 15.63
19+
CHF 15.45
29+
CHF 15.26
49+
CHF 15.07
74+
CHF 14.89
99+
CHF 13.96
199+
CHF 13.77
249+
CHF 13.59
499+
CHF 13.40
999+
CHF 13.03
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6309ZZ 63092Z 6309.2Z 6309KDD 6309DD 63092ZR 6309FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 53000 kN |
| Static load | 32000 kN |
| Max speed | 7000 rpm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Weight | 0.833 kg |
