SKU: 6309M/C4VL0241-SKF

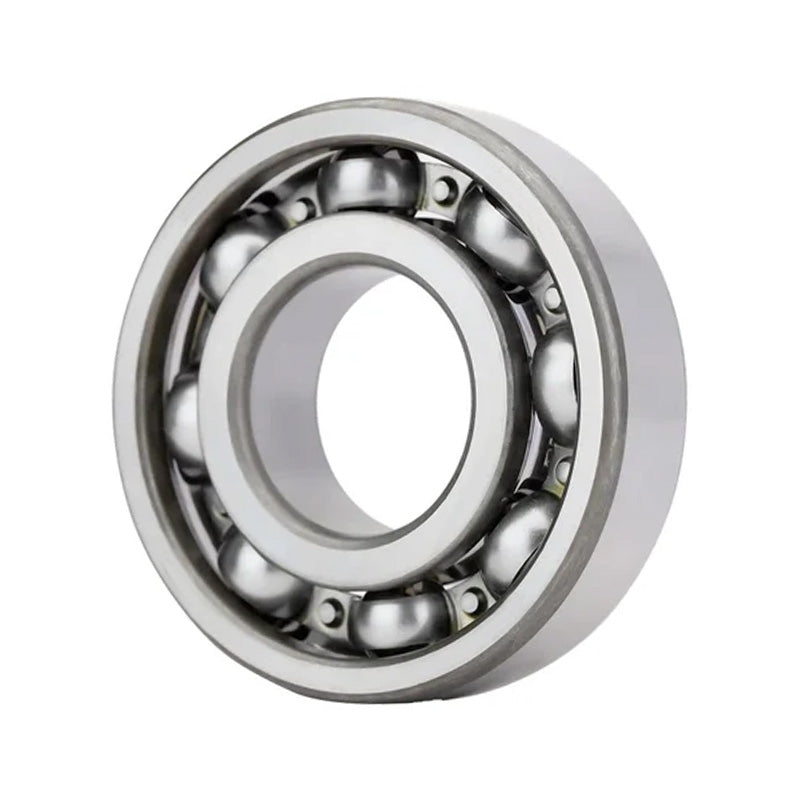

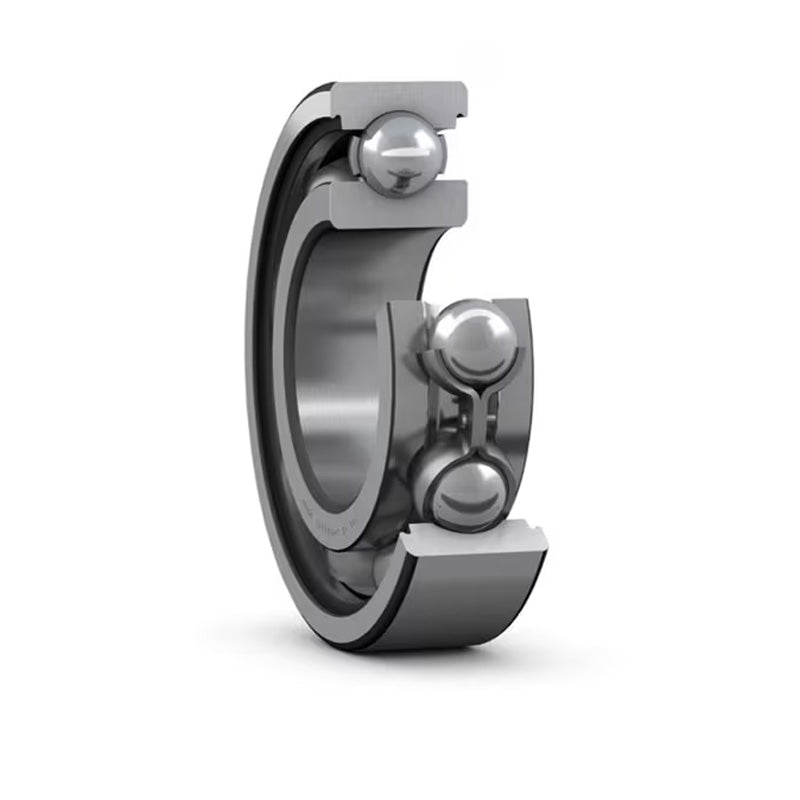

SKF 6309MC4VL0241 Open Deep Groove Ball Bearing 45x100x25mm
SKF 6309MC4VL0241 Open Deep Groove Ball Bearing 45x100x25mm
Regular price
CHF 1,114.39
ex VAT
Regular price
Sale price
CHF 1,114.39
ex VAT
In stock
Price Break
10+
CHF 991.81
19+
CHF 936.09
29+
CHF 924.94
39+
CHF 913.80
49+
CHF 902.66
74+
CHF 891.51
99+
CHF 835.79
199+
CHF 824.65
249+
CHF 813.50
499+
CHF 802.36
999+
CHF 780.07
Couldn't load pickup availability
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load | 55.3 kN |
| Static load | 31.5 kn |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.83 kg |
| d1 | 62.2mm |
| D1 | 82.7mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
