SKU: 6309NR-NSK

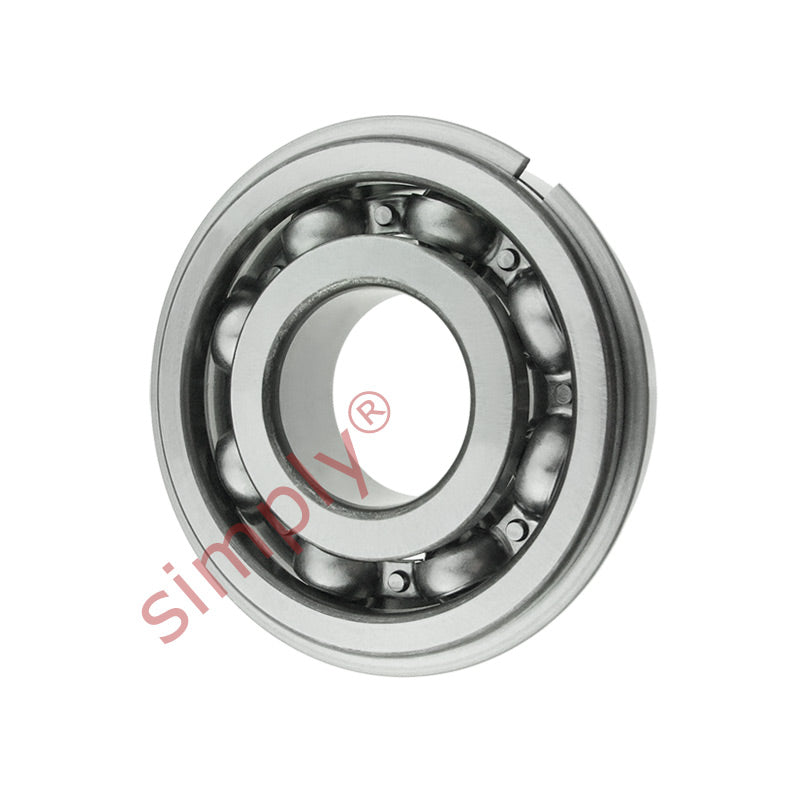

NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
4+
CHF 28.87
10+
CHF 27.25
20+
CHF 26.93
30+
CHF 26.60
50+
CHF 26.28
75+
CHF 25.95
100+
CHF 24.33
200+
CHF 24.01
250+
CHF 23.68
500+
CHF 23.36
1000+
CHF 22.71
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| Dynamic load Cr | 53000 N (5400 kgf) |
| Static load Cor | 32000 N (3250 kgf) |
| Factor | 13.1 |
| Speed in grease | 6700 rpm |
| Speed in oil | 8000 rpm |
| a max | 3.28mm |
| b min | 2.7mm |
| D1 max | 96.8mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 106.5mm |
| f max | 2.46mm |
| da2 min | 53mm |
| da2max | 61.5mm |
| Da2max | 92mm |
| ra max | 1.5mm |
| Dx min | 108mm |
| Cy max | 5.4mm |
| Weight | 0.829 kg |
