SKU: 6309NR-NTN

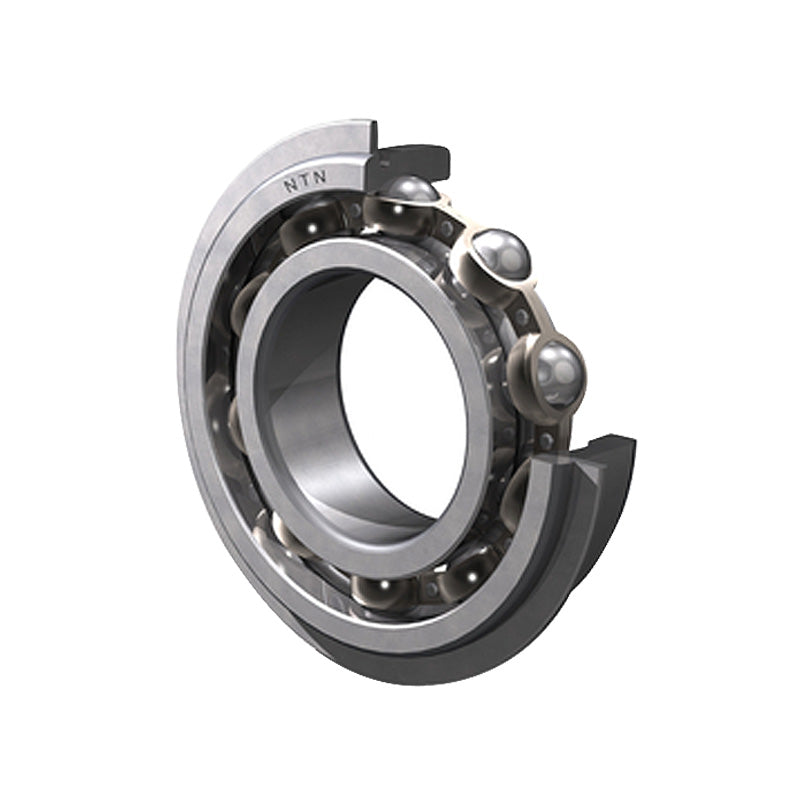

NTN 6309NR Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
NTN 6309NR Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
Equivalent to: 6309NRCM 309KG 309SG 43309
In stock
Price Break
3+
CHF 61.20
5+
CHF 57.76
10+
CHF 57.07
25+
CHF 56.38
49+
CHF 55.70
74+
CHF 55.01
99+
CHF 51.57
199+
CHF 50.88
249+
CHF 50.19
499+
CHF 49.51
999+
CHF 48.13
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6309NRCM 309KG 309SG 43309
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 100mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 58.5 kN |
| C<sub>or</sub> | 32 kN |
| C<sub>u</sub> | 2.5 kN |
| f<sub>0</sub> | 13.1 kN |
| Grease | 7000 rpm |
| Oil | 8200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 96.8mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 106.5mm |
| f Max. | 2.46mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 53mm |
| d<sub>a</sub> Max. | 61.5mm |
| D<sub>a</sub> Max. | 92mm |
| D<sub>X</sub> (approx) | 108mm |
| C<sub>Y</sub> Max. | 5.4mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.814 kg |
