NTN 6309ZC4 One Metal Shield Type Deep Groove Ball Bearing 45x100x25mm

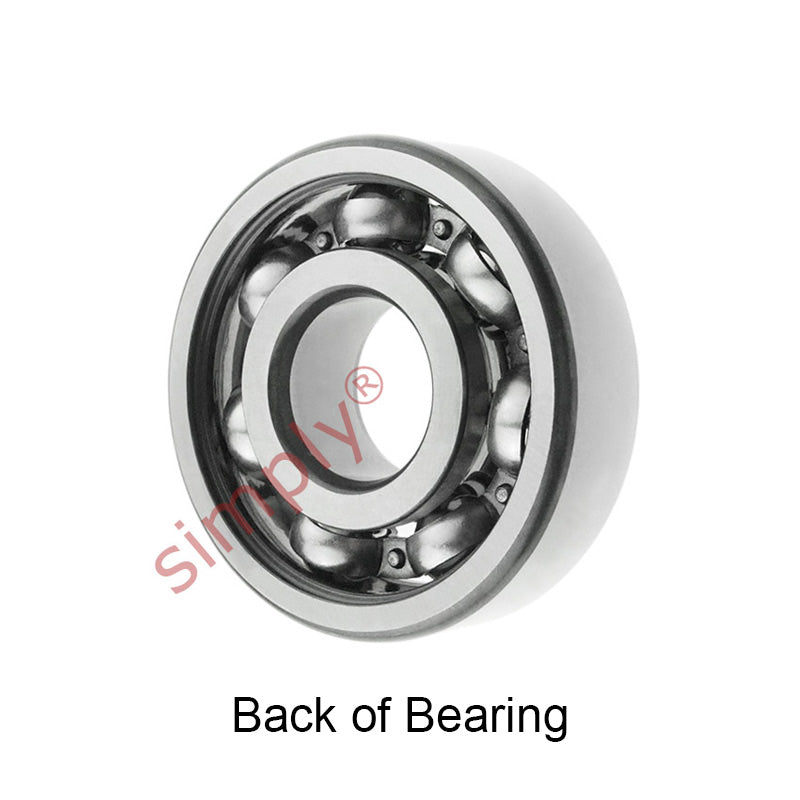

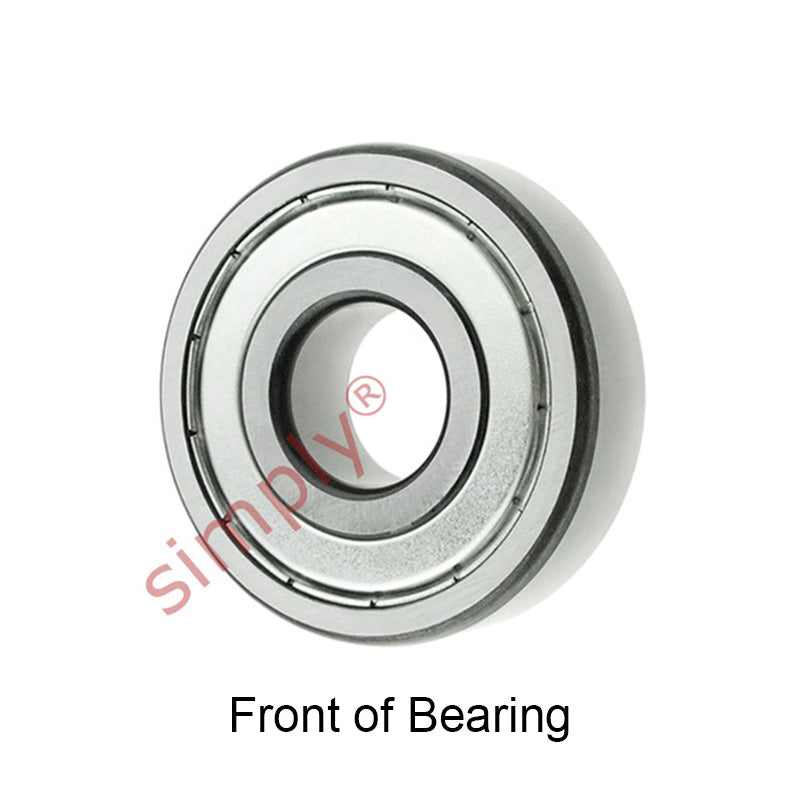

This bearing has one sided metal shielded and one open side.

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.

Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.

Brand / Quality:

NTN - High Quality

Inside Diameter:

45mm

Outside Diameter:

100mm

Width:

25mm

Seals / Shields:

Open and Metal Shielded

Clearance:

C4
