SKU: 6309ZZNR-NSK

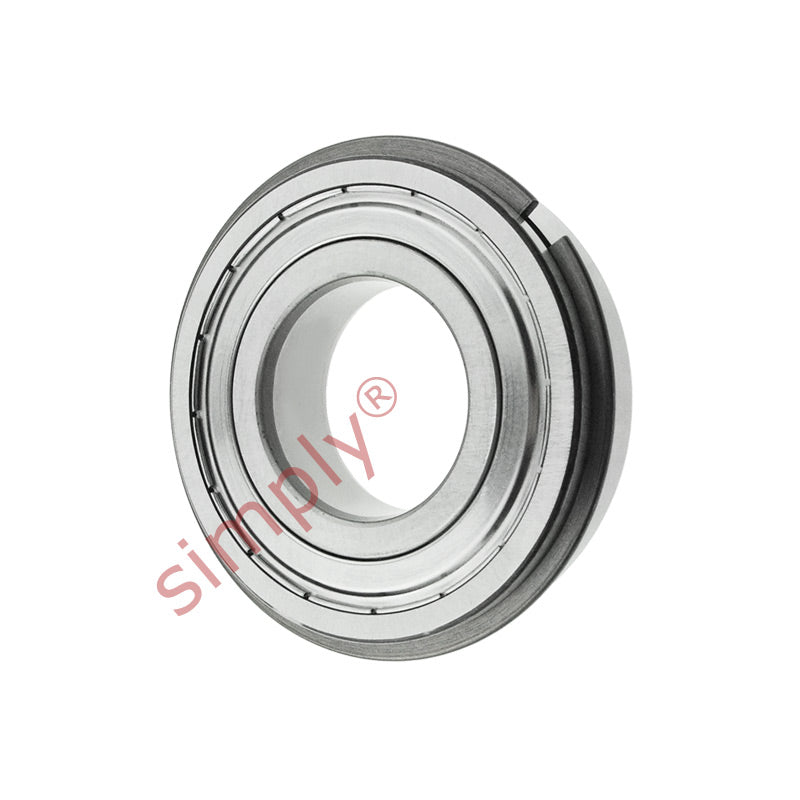

NSK 6309ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 45x100x25mm
NSK 6309ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 45x100x25mm
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
Equivalent to: 63092ZNR
In stock
Price Break
4+
CHF 34.19
10+
CHF 32.27
20+
CHF 31.89
30+
CHF 31.50
50+
CHF 31.12
75+
CHF 30.74
100+
CHF 28.82
200+
CHF 28.43
250+
CHF 28.05
500+
CHF 27.66
1000+
CHF 26.89
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 63092ZNR
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| Dynamic load Cr | 53000 N (5400 kgf) |
| Static load Cor | 32000 N (3250 kgf) |
| Factor | 13.1 |
| Speed in grease | 6700 rpm |
| Speed in oil | 8000 rpm |
| a max | 3.28mm |
| b min | 2.7mm |
| D1 max | 96.8mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 106.5mm |
| f max | 2.46mm |
| da2 min | 53mm |
| da2max | 61.5mm |
| Da2max | 92mm |
| ra max | 1.5mm |
| Dx min | 108mm |
| Cy max | 5.4mm |
| Weight | 0.829 kg |
