SKU: 6310-2RS/C3-EMQ-CDX

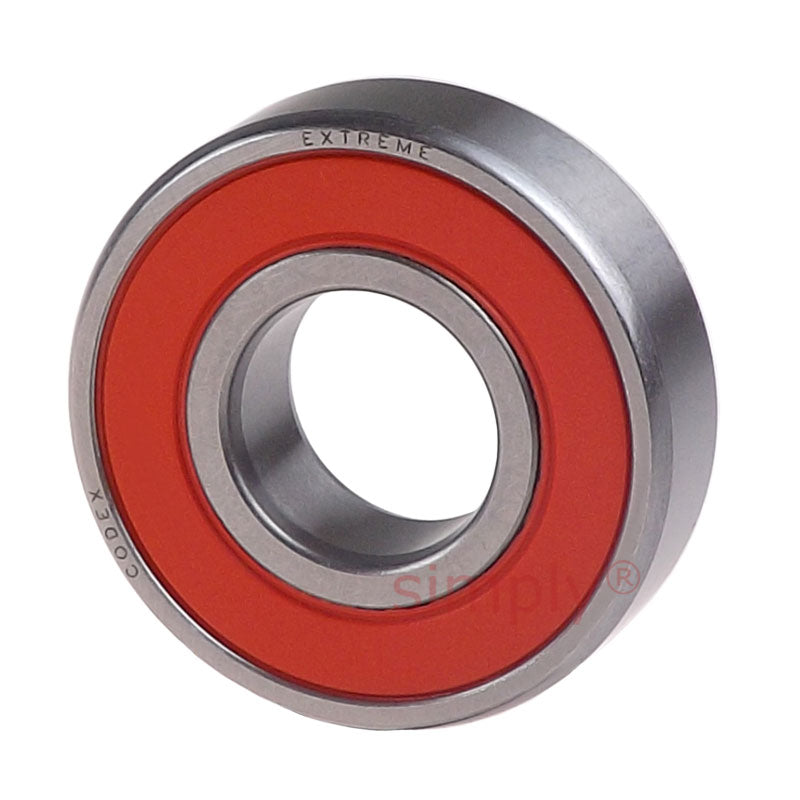

Codex 63102RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
Codex 63102RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
Equivalent to: 6310-2RS/C3
In stock
Price Break
4+
CHF 35.32
10+
CHF 33.34
20+
CHF 32.94
30+
CHF 32.54
50+
CHF 32.15
75+
CHF 31.75
100+
CHF 29.77
200+
CHF 29.37
250+
CHF 28.97
500+
CHF 28.58
1000+
CHF 27.78
Share this product
Description
Description
|
Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Equivalent: 6310-2RS/C3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 |
| Reference speed | 13000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.05 kg |
| d1 | 68.8mm |
| D2 | 95.2mm |
| r1r2 | 2mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
