SKU: 6310-2RS/C3-KOY

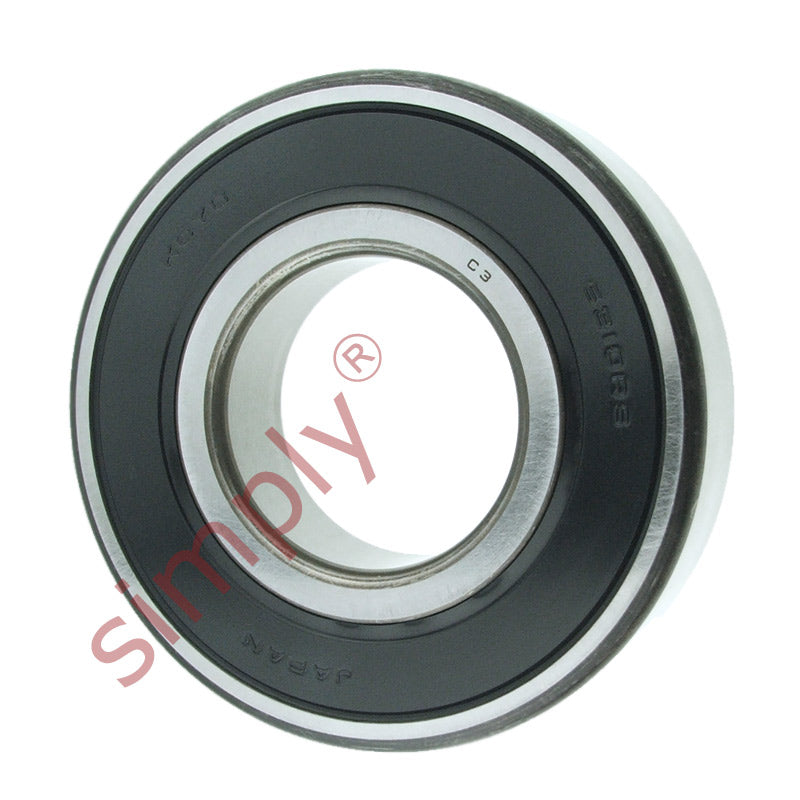

KOYO 63102RSC3 Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
Equivalent to: 6310NSEC3 6310DUC3 6310RSC3 6310RSHC3 6310PC3 6310RSRC3 6310LUC3 63102NSEC3 6310DDUC3 63102RS1C3 63102RSHC3 6310PPC3 63102RSRC3 6310LLU
In stock
Price Break
Couldn't load pickup availability
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6310NSEC3 6310DUC3 6310RSC3 6310RSHC3 6310PC3 6310RSRC3 6310LUC3 63102NSEC3 6310DDUC3 63102RS1C3 63102RSHC3 6310PPC3 63102RSRC3 6310LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 110mm |
| Width B | 27mm |
| Min radius r | 2mm |
| Dynamic load | 62 kN |
| Static load | 38.3 kN |
| Max speed in oil | 7300 rpm |
| Max speed in grease | 4100 rpm |
