SKU: 6310-2RS1/C3WT-SKF

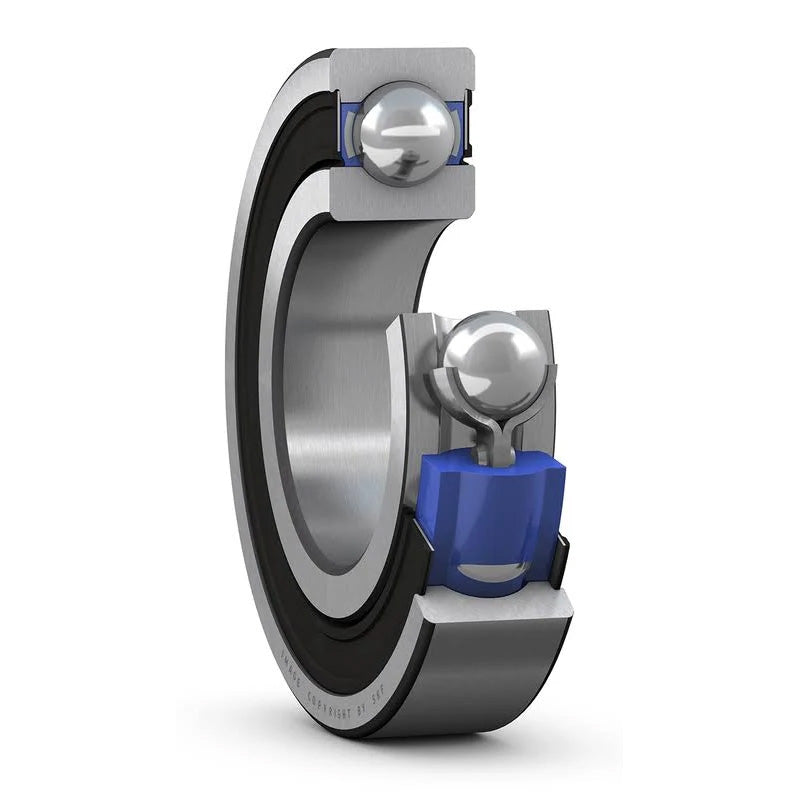

SKF 63102RS1C3WT Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
SKF 63102RS1C3WT Rubber Sealed Deep Groove Ball Bearing 50x110x27mm
Regular price
CHF 181.00
ex VAT
Regular price
Sale price
CHF 181.00
ex VAT
Equivalent to: 6310RS1C3WT
In stock
Price Break
4+
CHF 143.63
10+
CHF 135.56
20+
CHF 133.95
30+
CHF 132.33
50+
CHF 130.72
75+
CHF 129.11
100+
CHF 121.04
200+
CHF 119.42
250+
CHF 117.81
500+
CHF 116.20
1000+
CHF 112.97
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6310RS1C3WT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.05 kg |
| d1 | 68.8mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
