SKU: 6310-2Z-FAG

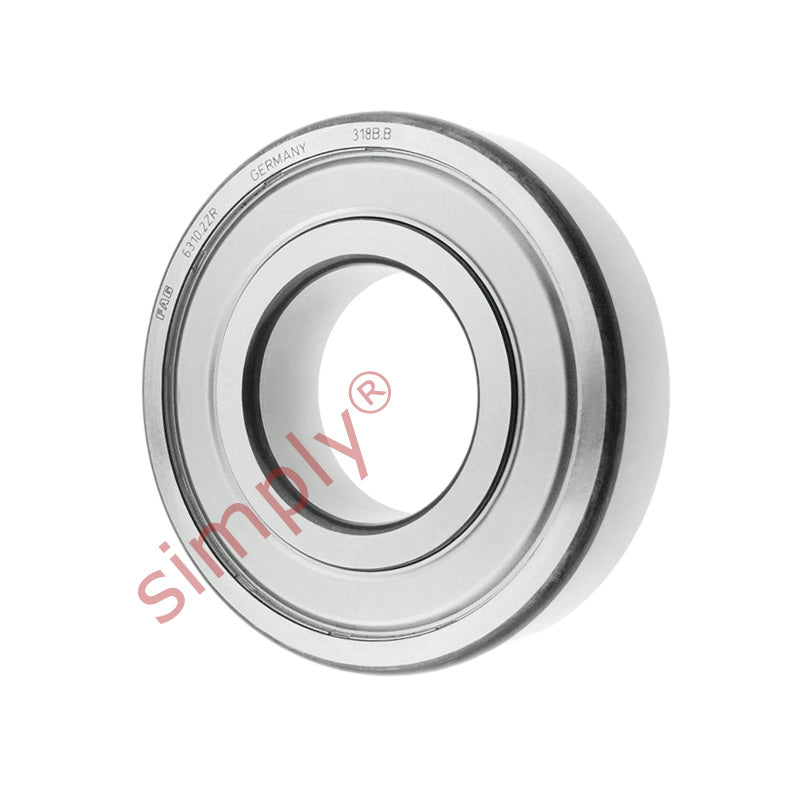

FAG 63102Z Metal Shielded Deep Groove Ball Bearing 50x110x27mm
FAG 63102Z Metal Shielded Deep Groove Ball Bearing 50x110x27mm
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: 6310ZZE 6310ZZ 6310.2Z 6310KDD 6310DD 6310FF 63102ZR
In stock
Price Break
10+
CHF 20.67
19+
CHF 19.51
29+
CHF 19.28
39+
CHF 19.05
49+
CHF 18.82
74+
CHF 18.58
99+
CHF 17.42
199+
CHF 17.19
249+
CHF 16.96
499+
CHF 16.73
999+
CHF 16.26
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6310ZZE 6310ZZ 6310.2Z 6310KDD 6310DD 6310FF 63102ZR
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 6700 rpm |
| Mass | 1.05 kg |
| d1 | 68.8mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61 |
