SKU: 6310/C3-FAG

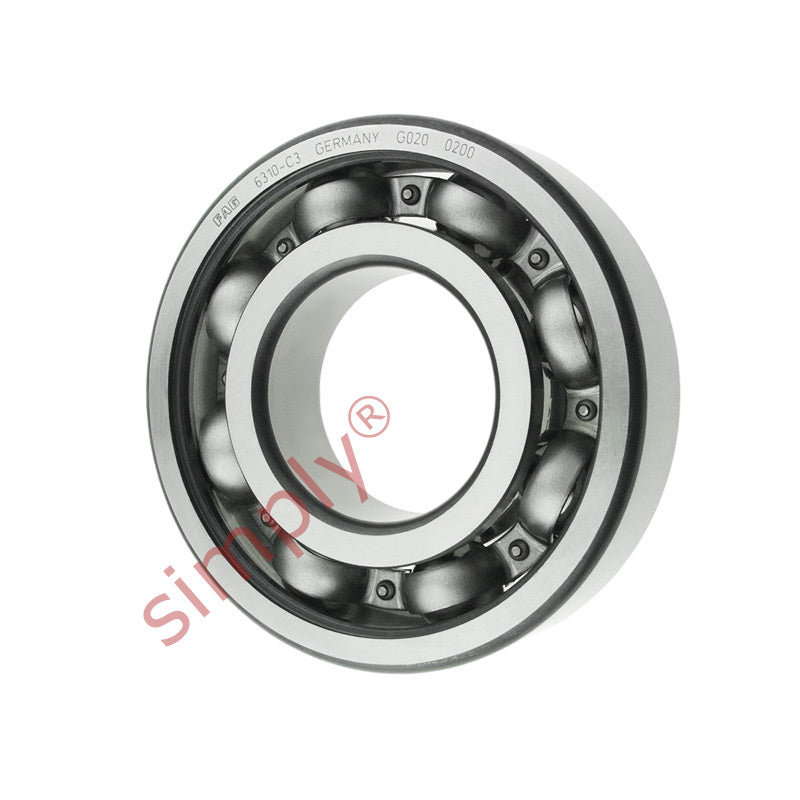

FAG 6310C3 Open Deep Groove Ball Bearing 50x110x27mm
FAG 6310C3 Open Deep Groove Ball Bearing 50x110x27mm
Regular price
CHF 25.28
ex VAT
Regular price
Sale price
CHF 25.28
ex VAT
Equivalent to: 6310 6310C3
In stock
Price Break
10+
CHF 22.50
19+
CHF 21.24
29+
CHF 20.98
39+
CHF 20.73
49+
CHF 20.48
74+
CHF 20.22
99+
CHF 18.96
199+
CHF 18.71
249+
CHF 18.45
499+
CHF 18.20
999+
CHF 17.70
Couldn't load pickup availability
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6310 6310C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8500 rpm |
| Mass | 1.05 kg |
| d1 | 68.8mm |
| D1 | 91.1mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
