SKU: 6311-2RS/C3-EMQ-CDX

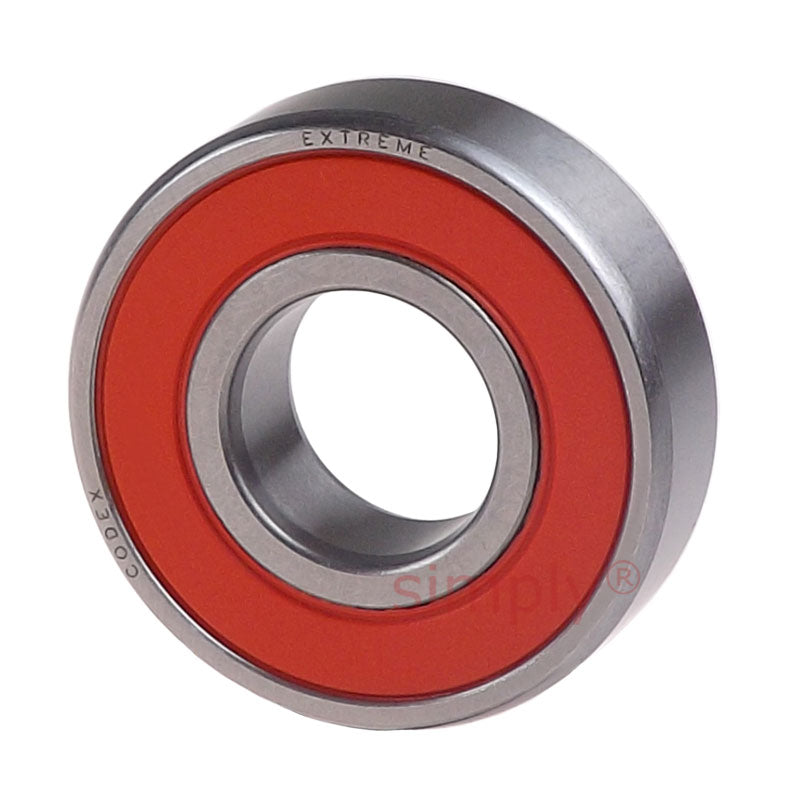

Codex 63112RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 55x120x29mm
Codex 63112RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 55x120x29mm
Regular price
CHF 55.71
ex VAT
Regular price
Sale price
CHF 55.71
ex VAT
Equivalent to: 6311-2RS/C3
In stock
Price Break
10+
CHF 49.58
19+
CHF 46.80
29+
CHF 46.24
39+
CHF 45.68
49+
CHF 45.13
74+
CHF 44.57
99+
CHF 41.78
199+
CHF 41.23
249+
CHF 40.67
499+
CHF 40.11
999+
CHF 39.00
Couldn't load pickup availability
Description
Description
|
Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Equivalent: 6311-2RS/C3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 74.1 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 |
| Reference speed | 12000 rpm |
| Limiting speed | 3800 rpm |
| Weight | 1.35 kg |
| d1 | 75.3mm |
| D2 | 104mm |
| r1r2 | 2mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
