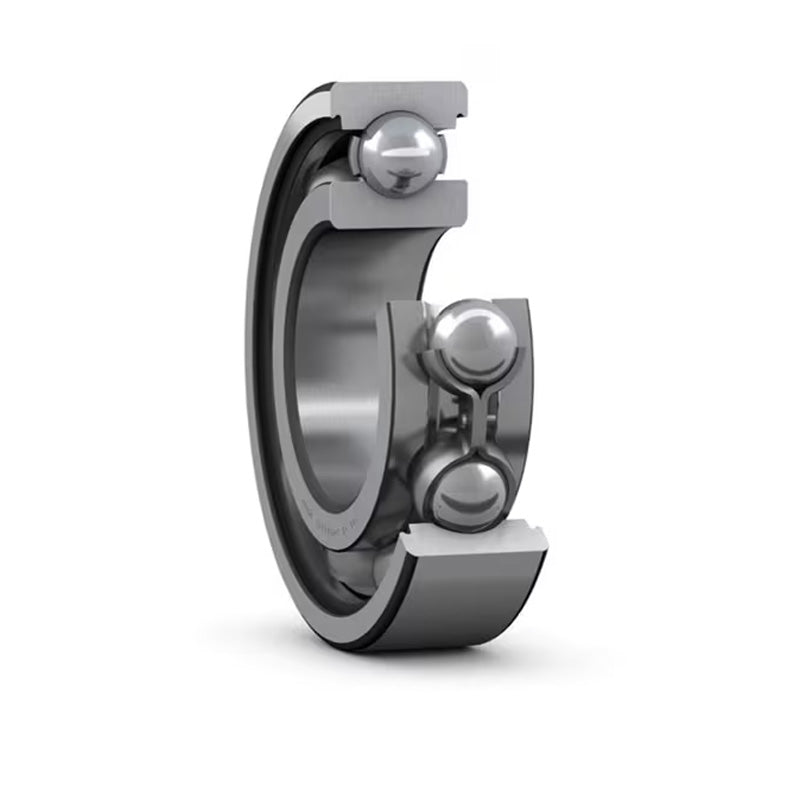

SKF 6311C4S1VK176 Open Deep Groove Ball Bearing 55x120x29mm
SKF 6311C4S1VK176 Open Deep Groove Ball Bearing 55x120x29mm
Regular price
CHF 304.76
ex VAT
Regular price
Sale price
CHF 304.76
ex VAT
In stock
Price Break
10+
CHF 271.24
19+
CHF 256.00
29+
CHF 252.95
39+
CHF 249.90
49+
CHF 246.86
74+
CHF 243.81
99+
CHF 228.57
199+
CHF 225.52
249+
CHF 222.47
499+
CHF 219.43
999+
CHF 213.33
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load | 74.1 kN |
| Static load | 45 kn |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.35 kg |
| d1 | 75.3mm |
| D1 | 99.5mm |
| D2 | 104mm |
| r1r2 min | 2mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
