SKU: 6311-FAG

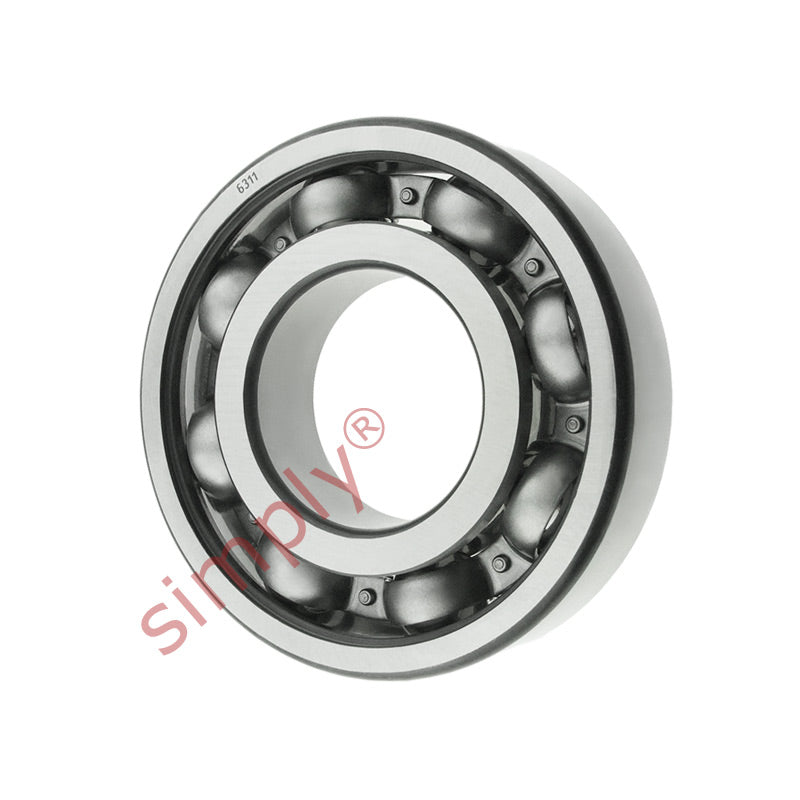

FAG 6311 Open Deep Groove Ball Bearing 55x120x29mm
FAG 6311 Open Deep Groove Ball Bearing 55x120x29mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.59
19+
CHF 23.21
29+
CHF 22.93
39+
CHF 22.66
49+
CHF 22.38
74+
CHF 22.10
99+
CHF 20.72
199+
CHF 20.45
249+
CHF 20.17
499+
CHF 19.89
999+
CHF 19.34
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 74.1 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 8000 rpm |
| Mass | 1.35 kg |
| d1 | 75.3mm |
| D1 | 99.5mm |
| D2 | 104mm |
| r1r2 min | 2mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
