SKU: 6312-2RS/C3-EMQ-CDX

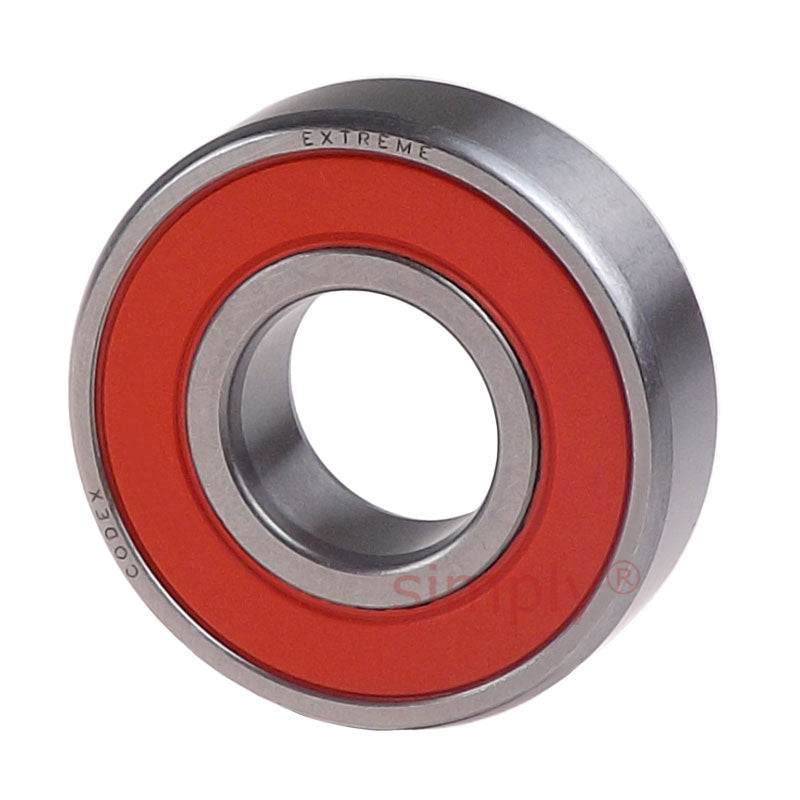

Codex 63122RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 60x130x31mm
Codex 63122RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 60x130x31mm
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
Equivalent to: 6312-2RS/C3
In stock
Price Break
4+
CHF 56.10
10+
CHF 52.95
20+
CHF 52.32
30+
CHF 51.69
50+
CHF 51.06
75+
CHF 50.43
100+
CHF 47.28
200+
CHF 46.65
250+
CHF 46.02
500+
CHF 45.39
1000+
CHF 44.13
Share this product
Description
Description
|
Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Equivalent: 6312-2RS/C3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 |
| Reference speed | 11000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 1.7 kg |
| d1 | 81.9mm |
| D2 | 112mm |
| r1r2 | 2.1mm |
| da min | 72mm |
| Da max | 118mm |
| ra max | 2mm |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
