SKU: 6312-FAG

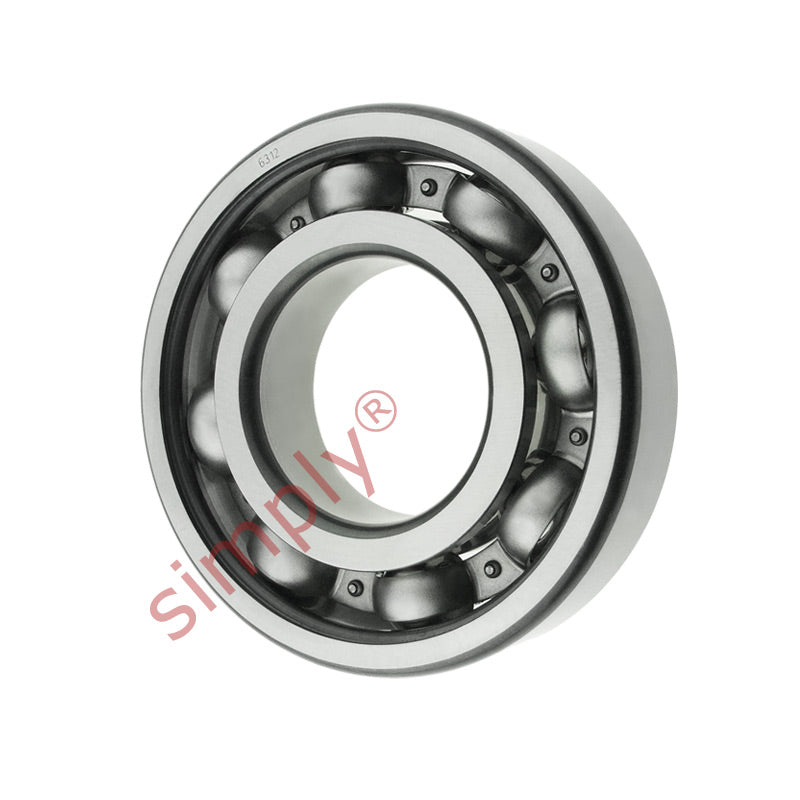

FAG 6312 Open Deep Groove Ball Bearing 60x130x31mm
FAG 6312 Open Deep Groove Ball Bearing 60x130x31mm
Regular price
CHF 63.00
ex VAT
Regular price
Sale price
CHF 63.00
ex VAT
In stock
Price Break
10+
CHF 49.46
19+
CHF 46.68
29+
CHF 46.12
39+
CHF 45.57
49+
CHF 45.01
74+
CHF 44.46
99+
CHF 41.68
199+
CHF 41.12
249+
CHF 40.57
499+
CHF 40.01
999+
CHF 38.90
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 1.7 kg |
| d1 | 81.9mm |
| D1 | 108mm |
| D2 | 112mm |
| r1r2 min | 2.1mm |
| da min | 72mm |
| Da max | 118mm |
| ra max | 2mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
