SKU: 6313/C3-MB

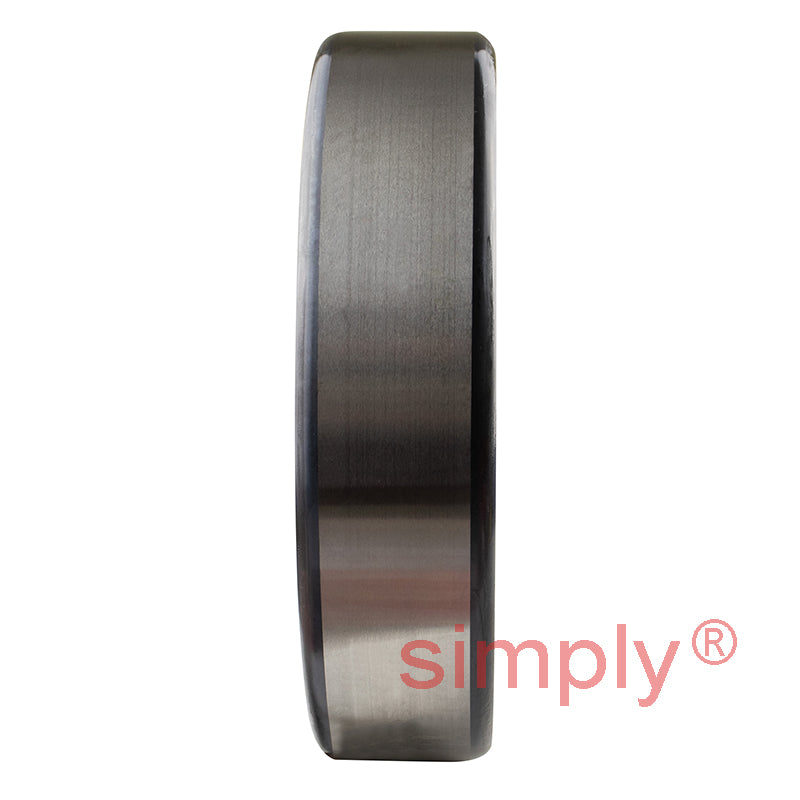

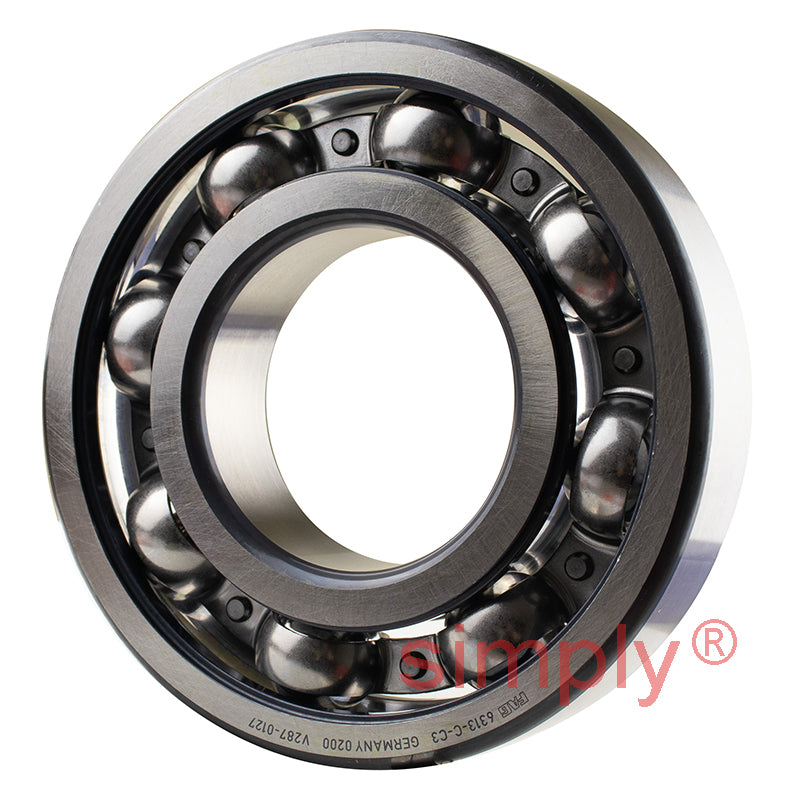

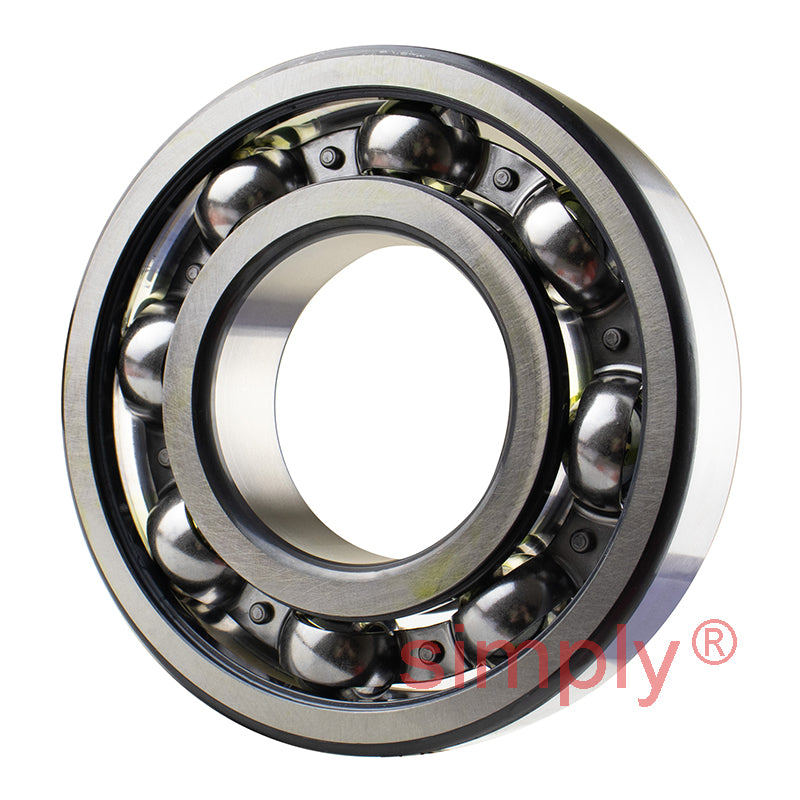

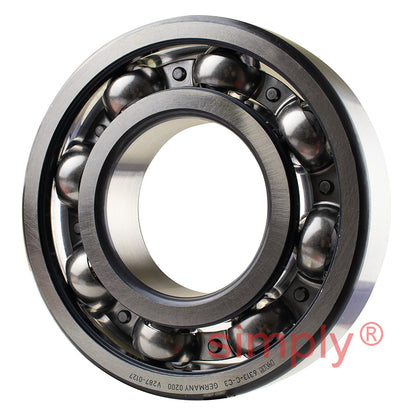

Major Brand 6313C3 Open Deep Groove Ball Bearing 65x140x33mm
Major Brand 6313C3 Open Deep Groove Ball Bearing 65x140x33mm
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
Equivalent to: 6313 6313C3
In stock
Price Break
10+
CHF 47.72
19+
CHF 45.04
29+
CHF 44.50
39+
CHF 43.97
49+
CHF 43.43
74+
CHF 42.89
99+
CHF 40.21
199+
CHF 39.68
249+
CHF 39.14
499+
CHF 38.60
999+
CHF 37.53
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6313 6313C3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 60 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 6700 rpm |
| Mass | 2.1 kg |
| d1 | 88.4mm |
| D1 | 116mm |
| D2 | 121mm |
| r1r2 min | 2.1mm |
| da min | 77mm |
| Da max | 128mm |
| ra max | 2mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
