SKU: 6313-ZZE-NACHI
NACHI 6313ZZE Metal Shielded Deep Groove Ball Bearing 65x140x33mm
NACHI 6313ZZE Metal Shielded Deep Groove Ball Bearing 65x140x33mm
Regular price
CHF 73.37
ex VAT
Regular price
Sale price
CHF 73.37
ex VAT
Equivalent to: 6313ZZ 63132Z 6313.2Z 6313KDD 6313DD 63132ZR 6313FF
In stock
Price Break
10+
CHF 65.30
19+
CHF 61.63
29+
CHF 60.90
39+
CHF 60.16
49+
CHF 59.43
74+
CHF 58.70
99+
CHF 55.03
199+
CHF 54.29
249+
CHF 53.56
499+
CHF 52.83
999+
CHF 51.36
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6313ZZ 63132Z 6313.2Z 6313KDD 6313DD 63132ZR 6313FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical

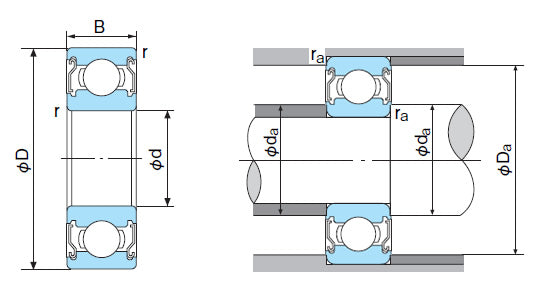

| Inside Diameter d | 65mm |
|---|---|
| Outside Diameter D | 140mm |
| Width B | 33mm |
| Min radius r | 2.1mm |
| Dynamic load | 92500 kN |
| Static load | 59500 kN |
| Max speed | 4900 rpm |
| da min | 77mm |
| Da max | 128mm |
| ra max | 2mm |
| Weight | 2.08 kg |
