SKU: 6315/C4-MB

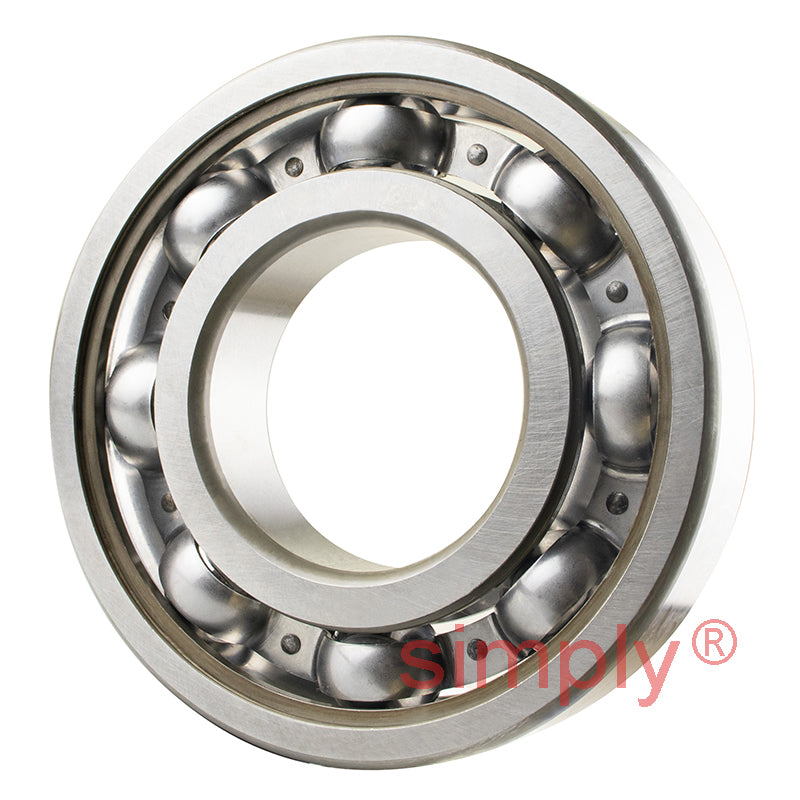

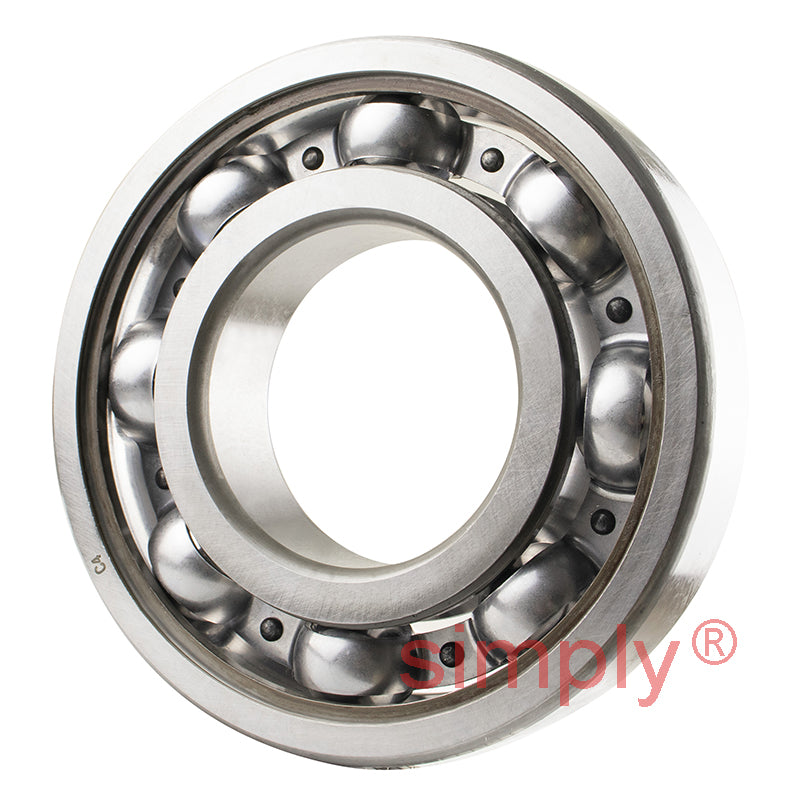

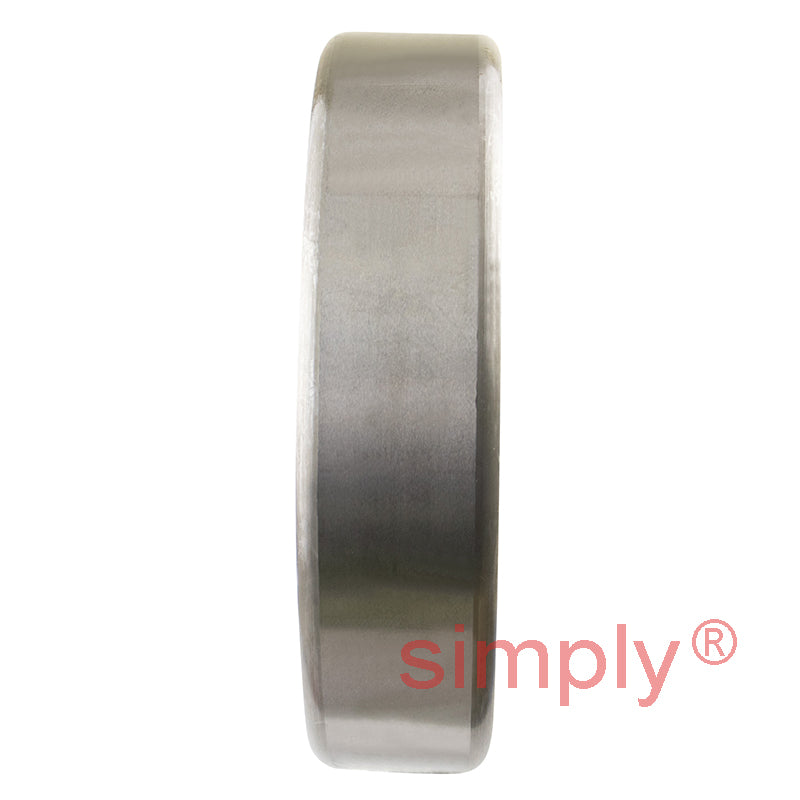

Major Brand 6315C4 Open Deep Groove Ball Bearing 75x160x37mm
Major Brand 6315C4 Open Deep Groove Ball Bearing 75x160x37mm
Regular price
CHF 183.00
ex VAT
Regular price
Sale price
CHF 183.00
ex VAT
Equivalent to: 6315 6315C4
In stock
Price Break
10+
CHF 145.53
19+
CHF 137.36
29+
CHF 135.72
39+
CHF 134.09
49+
CHF 132.45
74+
CHF 130.82
99+
CHF 122.64
199+
CHF 121.01
249+
CHF 119.37
499+
CHF 117.74
999+
CHF 114.46
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6315 6315C4
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 76.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Mass | 3 kg |
| d1 | 101mm |
| D1 | 133mm |
| D2 | 138mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| Da max | 148mm |
| ra max | 2mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
