SKU: 6315M/C4HVL0241-SKF

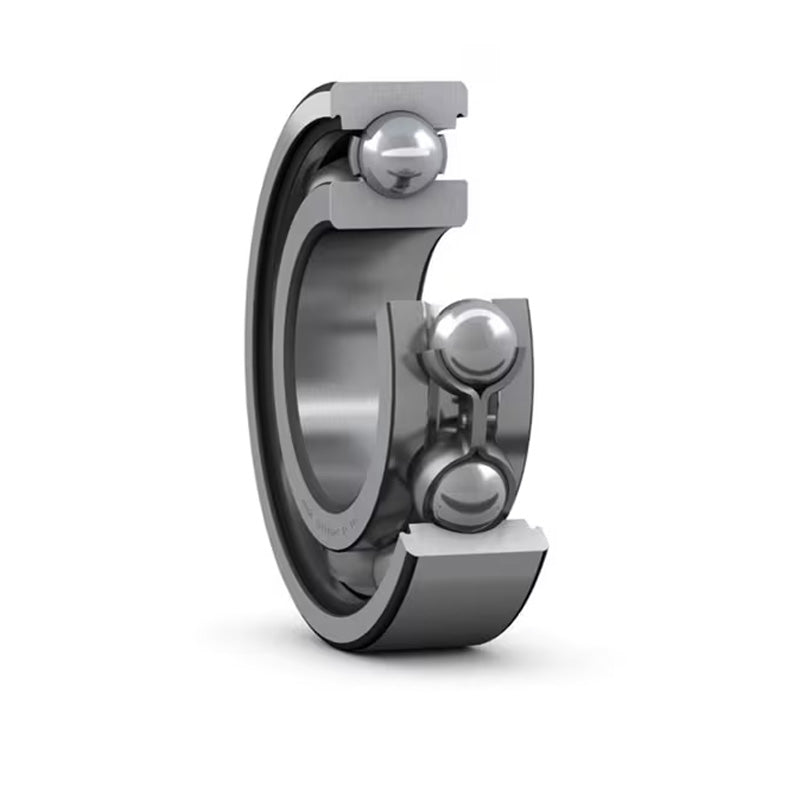

SKF 6315MC4HVL0241 Open Deep Groove Ball Bearing 75x160x37mm
SKF 6315MC4HVL0241 Open Deep Groove Ball Bearing 75x160x37mm
Regular price
CHF 1,314.00
ex VAT
Regular price
Sale price
CHF 1,314.00
ex VAT
In stock
Price Break
4+
CHF 1,046.30
10+
CHF 987.51
20+
CHF 975.76
30+
CHF 964.00
50+
CHF 952.25
75+
CHF 940.49
100+
CHF 881.71
200+
CHF 869.95
250+
CHF 858.20
500+
CHF 846.44
1000+
CHF 822.93
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load | 119 kN |
| Static load | 76.5 kn |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3 kg |
| d1 | 101mm |
| D1 | 133mm |
| D2 | 138mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| Da max | 148mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
