SKU: 6316-2Z/C3-SKF

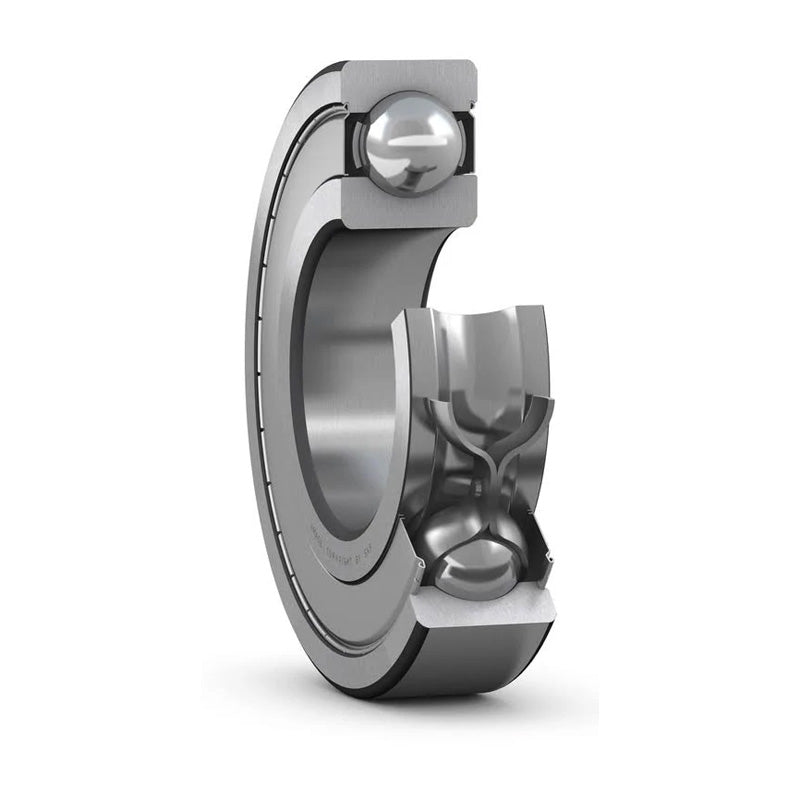

SKF 63162ZC3 Metal Shielded Deep Groove Ball Bearing 80x170x39mm
SKF 63162ZC3 Metal Shielded Deep Groove Ball Bearing 80x170x39mm
Regular price
CHF 178.00
ex VAT
Regular price
Sale price
CHF 178.00
ex VAT
Equivalent to: 6316ZZEC3 6316ZZC3 6316.2ZC3 6316KDDC3 6316DDC3 63162ZRC3 6316FFC3
In stock
Price Break
4+
CHF 141.44
10+
CHF 133.49
20+
CHF 131.90
30+
CHF 130.32
50+
CHF 128.73
75+
CHF 127.14
100+
CHF 119.19
200+
CHF 117.60
250+
CHF 116.01
500+
CHF 114.42
1000+
CHF 111.24
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6316ZZEC3 6316ZZC3 6316.2ZC3 6316KDDC3 6316DDC3 63162ZRC3 6316FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 130 kN |
| Static load Co | 86.5 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 4300 rpm |
| Weight | 3.6 kg |
| d1 | 108mm |
| d2 | 147mm |
| D2 | 0mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| da max | 0mm |
| Da max | 158mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
