SKU: 6316-2Z-HT-330

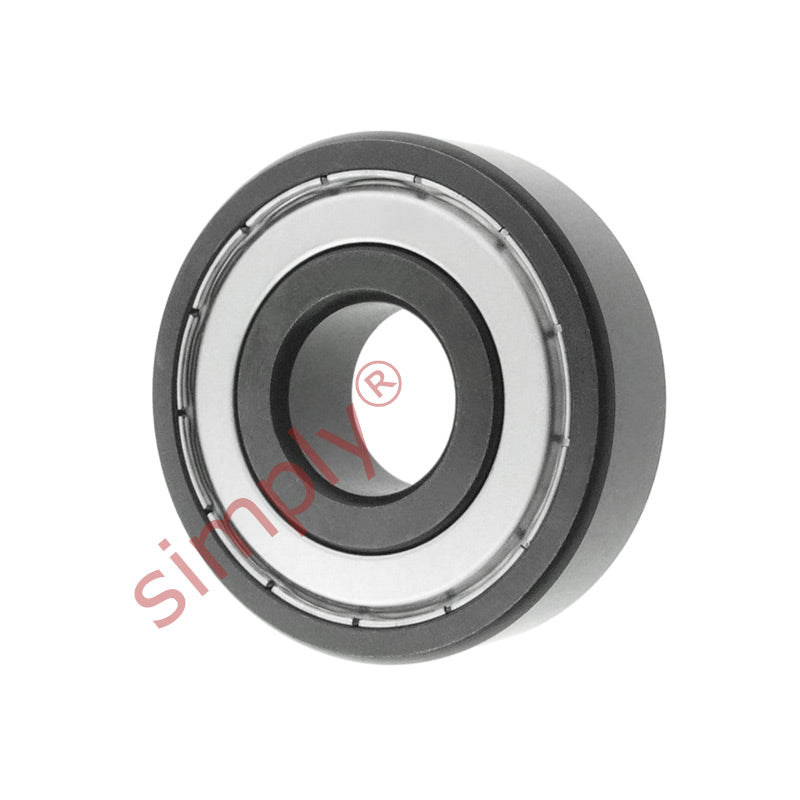

6316ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x170x39mm Max 45rpm
6316ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 80x170x39mm Max 45rpm
Regular price
CHF 85.66
ex VAT
Regular price
Sale price
CHF 85.66
ex VAT
Equivalent to: 63162ZVA201 63162ZVA208 63162ZVA228
In stock
Price Break
10+
CHF 76.24
19+
CHF 71.95
29+
CHF 71.10
39+
CHF 70.24
49+
CHF 69.38
74+
CHF 68.53
99+
CHF 64.25
199+
CHF 63.39
249+
CHF 62.53
499+
CHF 61.68
999+
CHF 59.96
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63162ZVA201 63162ZVA208 63162ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 80mm |
|---|---|
| Outside diameter D | 170mm |
| Width W | 39mm |
| Static load max | 47.7 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 45 rpm |
| Weight | 3600 g |
