SKU: 6316/C4-SKF

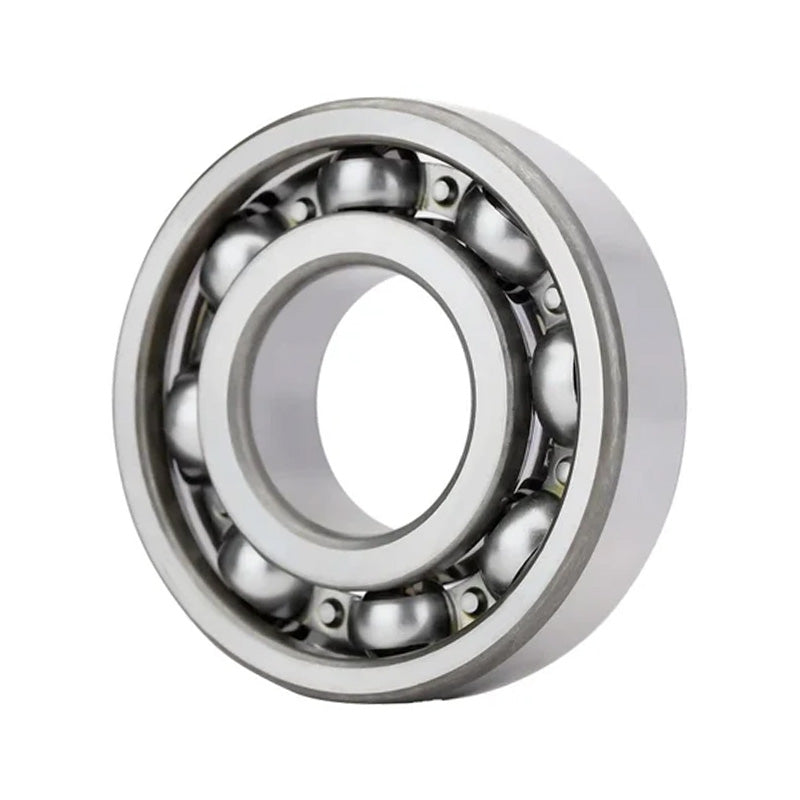

SKF 6316C4 Open Deep Groove Ball Bearing 80x170x39mm
SKF 6316C4 Open Deep Groove Ball Bearing 80x170x39mm
Regular price
CHF 302.20
ex VAT
Regular price
Sale price
CHF 302.20
ex VAT
In stock
Price Break
10+
CHF 268.96
19+
CHF 253.85
29+
CHF 250.83
39+
CHF 247.80
49+
CHF 244.78
74+
CHF 241.76
99+
CHF 226.65
199+
CHF 223.63
249+
CHF 220.61
499+
CHF 217.58
999+
CHF 211.54
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load | 130 kN |
| Static load | 86.5 kn |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.6 kg |
| d1 | 108mm |
| D1 | 142mm |
| D2 | 147mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
