SKU: 6316-ZZ/C3-NACHI

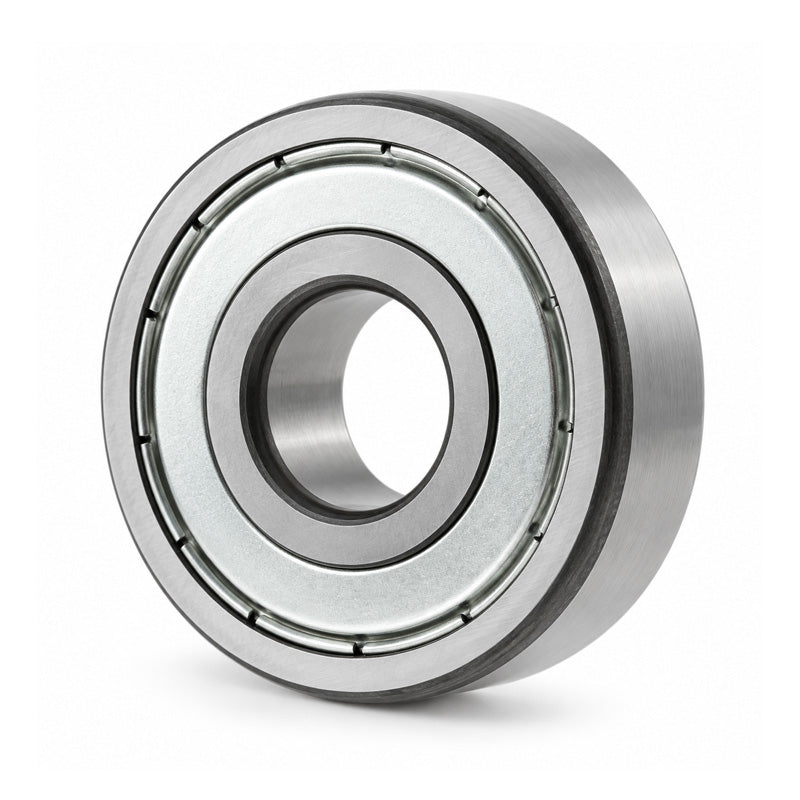

NACHI 6316ZZC3 Metal Shielded Deep Groove Ball Bearing 80x170x39mm
NACHI 6316ZZC3 Metal Shielded Deep Groove Ball Bearing 80x170x39mm
Regular price
CHF 125.90
ex VAT
Regular price
Sale price
CHF 125.90
ex VAT
Equivalent to: 6316ZZEC3 63162ZC3 6316.2ZC3 6316KDDC3 6316DDC3 63162ZRC3 6316FFC3
In stock
Price Break
10+
CHF 112.05
19+
CHF 105.76
29+
CHF 104.50
39+
CHF 103.24
49+
CHF 101.98
74+
CHF 100.72
99+
CHF 94.43
199+
CHF 93.17
249+
CHF 91.91
499+
CHF 90.65
999+
CHF 88.13
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6316ZZEC3 63162ZC3 6316.2ZC3 6316KDDC3 6316DDC3 63162ZRC3 6316FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 80mm |
|---|---|
| Outside Diameter D | 170mm |
| Width B | 39mm |
| Min radius r | 2.1mm |
| Dynamic load | 123000 kN |
| Static load | 86500 kN |
| Max speed | 4000 rpm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Weight | 3.59 kg |
