SKU: 6316C3-NTN

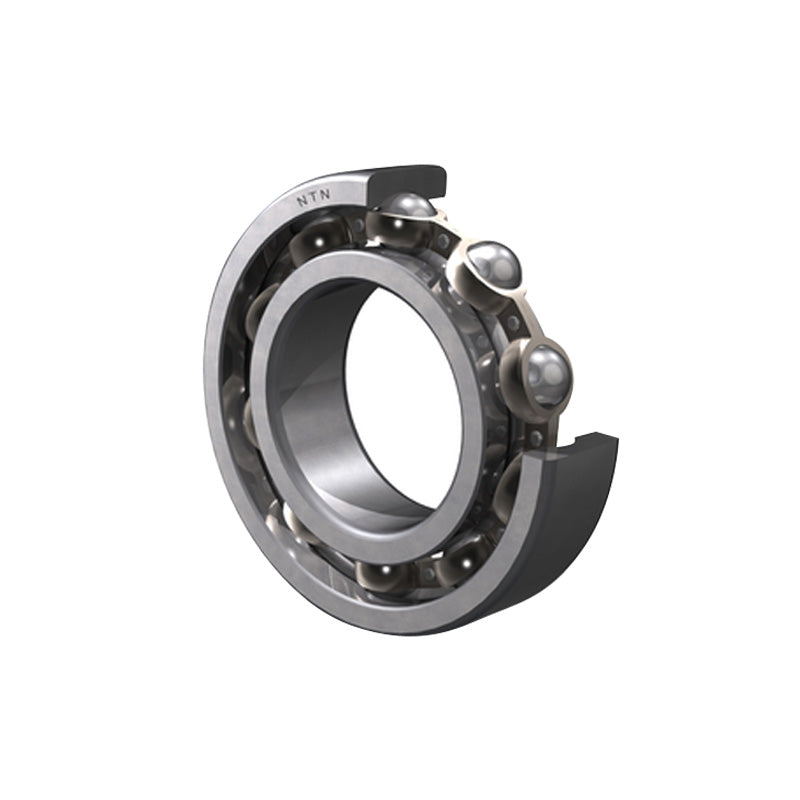

NTN 6316C3 Open Type Deep Groove Ball Bearing 80x170x39mm
NTN 6316C3 Open Type Deep Groove Ball Bearing 80x170x39mm
Regular price
CHF 139.54
ex VAT
Regular price
Sale price
CHF 139.54
ex VAT
Equivalent to: 316KC3 1316C3 316KSC3 6316C3 3316C3 17BC3
In stock
Price Break
10+
CHF 124.19
19+
CHF 117.21
29+
CHF 115.82
39+
CHF 114.42
49+
CHF 113.03
74+
CHF 111.63
99+
CHF 104.66
199+
CHF 103.26
249+
CHF 101.86
499+
CHF 100.47
999+
CHF 97.68
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 316KC3 1316C3 316KSC3 6316C3 3316C3 17BC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| B | 39mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 136 kN |
| C<sub>or</sub> | 86.5 kN |
| C<sub>u</sub> | 6.05 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 4000 rpm |
| Oil | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 91mm |
| D<sub>a</sub> Max. | 159mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.59 kg |
