SKU: 6316M/C3VL0241-SKF

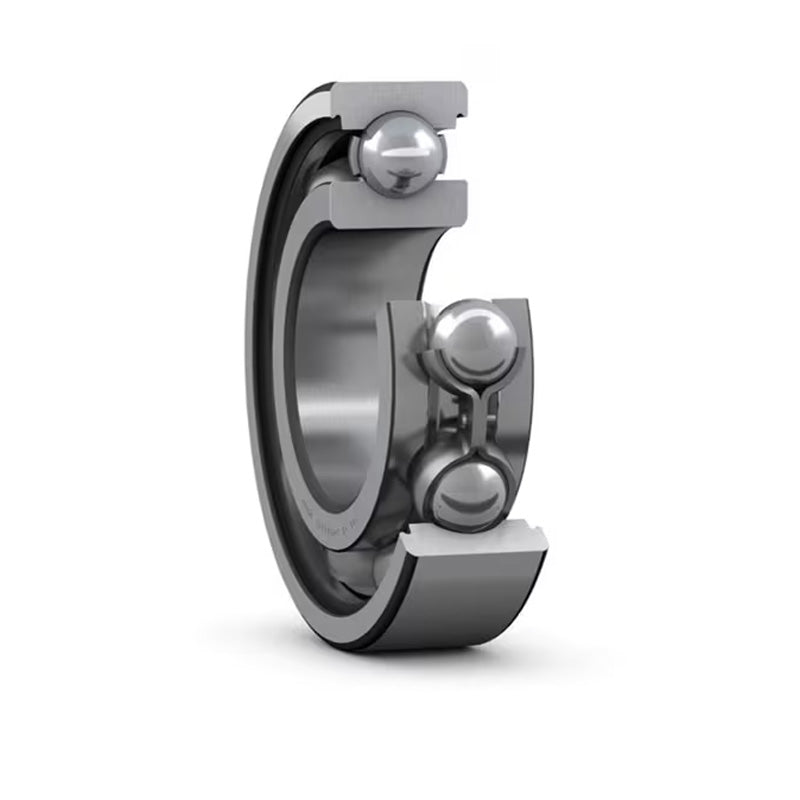

SKF 6316MC3VL0241 Open Deep Groove Ball Bearing 80x170x39mm
SKF 6316MC3VL0241 Open Deep Groove Ball Bearing 80x170x39mm
Regular price
CHF 1,387.00
ex VAT
Regular price
Sale price
CHF 1,387.00
ex VAT
In stock
Price Break
4+
CHF 1,104.88
10+
CHF 1,042.81
20+
CHF 1,030.40
30+
CHF 1,017.98
50+
CHF 1,005.57
75+
CHF 993.15
100+
CHF 931.08
200+
CHF 918.67
250+
CHF 906.25
500+
CHF 893.84
1000+
CHF 869.01
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load | 130 kN |
| Static load | 86.5 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.6 kg |
| d1 | 108mm |
| D1 | 142mm |
| D2 | 147mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
