SKU: 6317-2Z-SKF

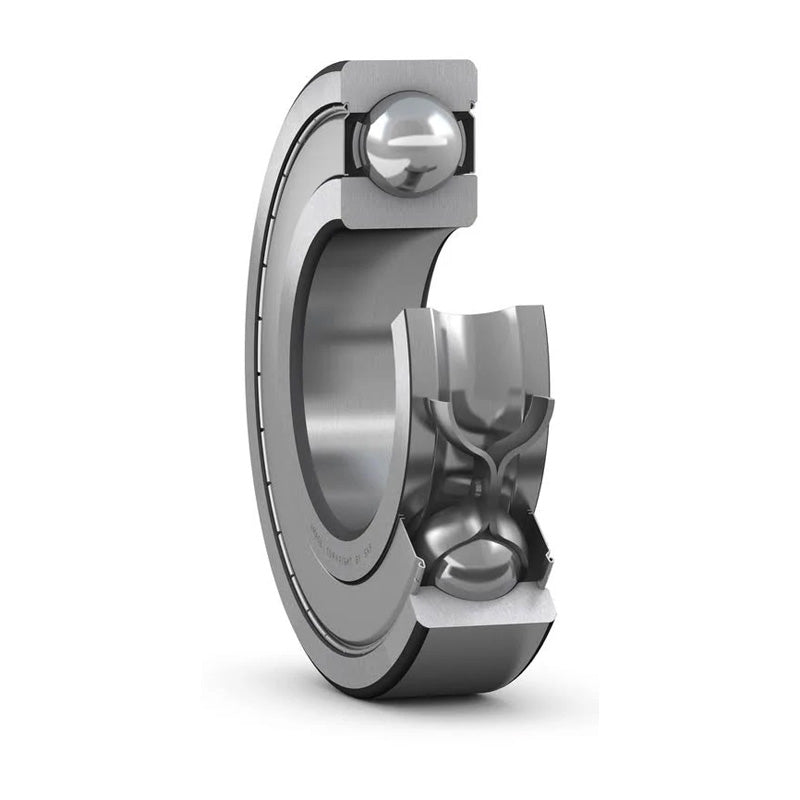

SKF 63172Z Metal Shielded Deep Groove Ball Bearing 85x180x41mm
SKF 63172Z Metal Shielded Deep Groove Ball Bearing 85x180x41mm
Regular price
CHF 276.00
ex VAT
Regular price
Sale price
CHF 276.00
ex VAT
Equivalent to: 6317ZZE 6317ZZ 6317.2Z 6317KDD 6317DD 6317FF 63172ZR 6317ZZ 63172Z 6317ZZ
In stock
Price Break
4+
CHF 219.22
10+
CHF 206.91
20+
CHF 204.45
30+
CHF 201.98
50+
CHF 199.52
75+
CHF 197.06
100+
CHF 184.74
200+
CHF 182.28
250+
CHF 179.81
500+
CHF 177.35
1000+
CHF 172.42
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6317ZZE 6317ZZ 6317.2Z 6317KDD 6317DD 6317FF 63172ZR 6317ZZ 63172Z 6317ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| Dynamic load C | 140 kN |
| Static load Co | 96.5 kN |
| Fatigue load limit Pu | 3.55 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 4.25 kg |
| d1 | 115mm |
| d2 | 0mm |
| D2 | 155mm |
| r1r2 min | 3mm |
| da min | 99mm |
| da max | 0mm |
| Da max | 166mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
