SKU: 6319-2NK-NACHI
NACHI 63192NK Non Contact Low Friction Sealed Deep Groove Ball Bearing 95x200x45mm - Allow 2-3 Days
NACHI 63192NK Non Contact Low Friction Sealed Deep Groove Ball Bearing 95x200x45mm - Allow 2-3 Days
Regular price
CHF 558.00
ex VAT
Regular price
Sale price
CHF 558.00
ex VAT
Equivalent to: 6319NK
In stock
Price Break
5+
CHF 493.69
9+
CHF 473.75
19+
CHF 463.77
29+
CHF 448.81
49+
CHF 438.84
74+
CHF 413.90
99+
CHF 349.08
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
Equivalent: 6319NK
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard

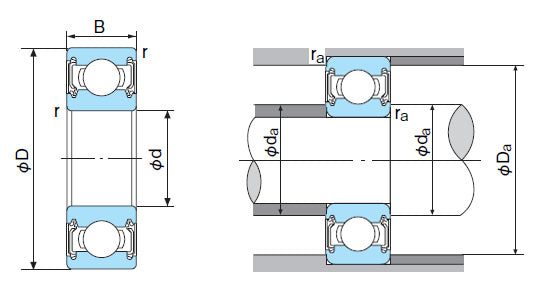

Technical
Technical
| Inside Diameter d | 95mm |
|---|---|
| Outside Diameter D | 200mm |
| Width B | 45mm |
| Min radius r | 3mm |
| Dynamic load | 153000 kN |
| Static load | 118000 kN |
| Max speed | 3300 rpm |
| da min | 109mm |
| Da max | 186mm |
| ra max | 2.5mm |
| Weight | 5.67 kg |
